ABB

2CMA167550R1000

Name: 2CMA167550R1000
Brand: ABB
Availability: PreOrder

Product type: 363BS4

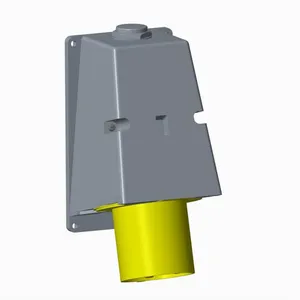

363BS4 Wall mounted inlet

Description

Surface Inlet, earthing sleeve position 4h, rated current 63A, IP44 splashproof, 3-poles+earth, frequency 50-60 Hz, color code Yellow

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Surface Inlets

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA167550R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.79 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	107x117x0.237 mm
EAN code	7392696675505
Product group	SI
color	Yellow
design	Surface mounted plug
eclass	27440519
unspsc	39121406
function	Surface Inlet
standards	IEC 60309-1, -2
wire size	8 ... 4 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Wall mounted inlet
suitable for	Surface Inlets
frequency (f)	50 Hz60 Hz
cb certificate	https://library.abb.com/d/2CHC660163X0201
mounting holes	170x95
order multiple	1 piece
connection type	Screw
number of poles	4
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2417200
e-number (sweden)	2417200
product main type	TBS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1519130
tightening torque	WireClamp3.5 N·m
e-number (finland)	2420193
rated current (in)	63 A
rated voltage (ur)	100 ... 130 V
ambient temperature	-25 ... 40 °C
cable cross-section	6 ... 25 mm2
installation manual	https://library.abb.com/d/2CMC000040M0001
invoice description	Ind. P&S#363BS4
rated frequency (f)	50 ... 60 Hz
cable entry position	Cable entry,M32 alternative rear knock-out cable entry
degree of protection	IP44
additional information	3P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
