ABB

2CMA167893R1000

Name: 2CMA167893R1000
Brand: ABB
Availability: PreOrder

Product type: 263MHS4W

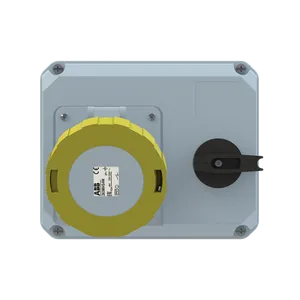

263MHS4W Industrial Switched Interlocked Socket Outlet

Description

Switched Interlocked Socket Outlet, horisontal, earthing sleeve position 4h, rated current 63A, IP67 watertight, 2-poles+earth, frequency 50-60 Hz, color code Yellow

Low Voltage Products and Systems
Industrial Plugs and Sockets
Critical & Safe
Switched Interlocked Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA167893R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	206x168x0.182 mm
EAN code	7392696678933
Product group	SI
color	Yellow
eclass	27440510
unspsc	39120000
function	Switched interlocked socket outlet, horisontal
standards	IEC 60309-1, -2, -4
wire size	8 ... 4 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Switched Interlocked Socket Outlet
suitable for	Switched Interlocked Socket Outlets, Horisontal
frequency (f)	50 Hz60 Hz
mounting type	Horizontal
cable diameter	17 ... 35 mm
mounting holes	152x132
order multiple	1 piece
connection type	Screw
number of poles	3
protection type	Switched Interlocked
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2417001
e-number (sweden)	2417001
product main type	CMHS
reach declaration	https://library.abb.com/d/2CMC700005D0001
tightening torque	WireClamp3.5 N·m
e-number (finland)	2420078
rated current (in)	63 A
rated voltage (ur)	100 ... 130 V
ambient temperature	-25 ... 40 °C
cable cross-section	6 ... 25 mm2
installation manual	https://library.abb.com/d/2CMC000031M0001
invoice description	Ind. P&S#263MHS4W
cable entry position	Top and bottom
degree of protection	IP67
additional information	2P+E
cable outlets per side	1xØ25
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000057M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
