ABB

2CMA167905R1000

Product type: 463MHS6W

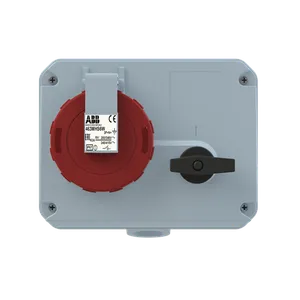

463MHS6W Industrial Switched Interlocked Socket Outlet

Description

Switched Interlocked Socket Outlet, horisontal, earthing sleeve position 6h, rated current 63A, IP67 watertight, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red
  • Low Voltage Products and Systems
  • Industrial Plugs and Sockets
  • Critical & Safe
  • Switched Interlocked Socket Outlets
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight1.9 KG / psc.
Commodity number85366990
Country of originCZ
Dimensions (WxHxD)206x168x0.172 mm
EAN code7392696679053
Product groupSI
color Red
eclass 27440510
unspsc 39120000
function Switched interlocked socket outlet, horisontal
standards IEC 60309-1, -2, -4
wire size 8 ... 4 AWG
ral number RAL 7001 - Silver Grey
rohs status Following EU Directive 2011/65/EU
product name Industrial Switched Interlocked Socket Outlet
sub-function Cable entry, knock-outs 2xØ32mm
suitable for Switched Interlocked Socket Outlets, Horisontal
frequency (f) 50 Hz60 Hz
mounting type Horizontal
cable diameter 17 ... 35 mm
mounting holes 152x132
order multiple 1 piece
connection type Screw
number of poles 5
protection type Switched Interlocked
housing material Thermoplastic (PBT)
rohs information https://library.abb.com/d/2CMC700005D0001
e-number (norway) 1564983
e-number (sweden) E2417014
product main type CMHS
reach declaration https://library.abb.com/d/2CMC700005D0001
tightening torque WireClamp3.5 N·m
e-number (finland) 2421398
rated current (in) 63 A
rated voltage (ur) 200/346 ... 240/415 V
ambient temperature -25 ... 40 °C
cable cross-section 6 ... 25 mm2
installation manual https://library.abb.com/d/2CMC000031M0001
invoice description Ind. P&S#463MHS6W
mechanical drawings https://library.abb.com/d/9AKK107991A3901
cable entry position Top and bottom
degree of protection IP67
additional information 3P+N+E
cable outlets per side 1xØ32
recommended screw driver PH2
environmental information https://library.abb.com/d/2CMC000057M0000
suitable for product class IEC Industrial Plugs and Sockets
declaration of conformity - ce https://library.abb.com/d/2CMC700005D0001
