ABB

2CMA168013R1000

Product type: 332MPM3W

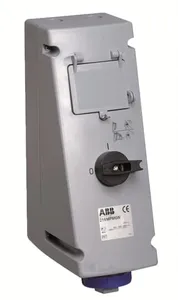

332MPM3W Industrial Switched Interlocked Socket Outlet

Description

Switched Interlocked Socket Outlet with MCB, earthing sleeve position 3h, rated current 32A, IP67 watertight, 3-poles+earth, frequency 50-60 Hz, color code red
  • Low Voltage Products and Systems
  • Industrial Plugs and Sockets
  • Critical & Safe
  • Switched Interlocked Socket Outlets with MCB
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight1.8 KG / psc.
Commodity number85366990
Country of originCZ
Dimensions (WxHxD)130x183x0.375 mm
EAN code7392696680134
Product groupSI
color Red
eclass 27440510
unspsc 39120000
function Switched interlocked socket outlet with MCB
standards IEC 60309-1, -2, -4
ral number RAL 7001 - Silver Grey
rohs status Following EU Directive 2011/65/EU
product name Industrial Switched Interlocked Socket Outlet
sub-function Cable entry, knock-outs 2xØ25mm
suitable for Switched Interlocked Socket Outlets with MCB
frequency (f) 50/60 Hz
mounting type Vertical
cable diameter 13 ... 21.5 mm
mounting holes 290x100
order multiple 1 piece
connection type Screw Clamp
number of poles 4
protection type Mini circuit breaker
housing material Thermoplastic (PBT)
rohs information https://library.abb.com/d/2CMC700005D0001
e-number (norway) 2417086
e-number (sweden) 2417086
product main type CMPM
reach declaration https://library.abb.com/d/2CMC700005D0001
e-number (finland) 2417086
rated current (in) 32 A
rated voltage (ur) 380/440 V
ambient temperature -25 ... 40 °C
cable cross-section 2.5 ... 10 mm2
installation manual https://library.abb.com/d/2CMC000041M0001
invoice description Ind. P&S#332MPM3W
cable entry position Top
degree of protection IP67
additional information 3P+E
cable outlets per side 2xØ25
recommended screw driver PH2
environmental information https://library.abb.com/d/2CMC000057M0000
suitable for product class IEC Industrial Plugs and Sockets
declaration of conformity - ce https://library.abb.com/d/2CMC700005D0001
