ABB

2CMA168127R1000

Name: 2CMA168127R1000
Brand: ABB
Availability: PreOrder

Product type: 416A6

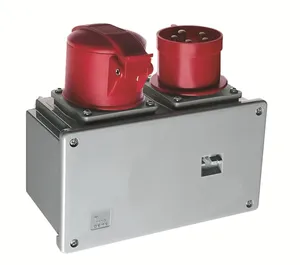

416A6 Industrial Adaptor

Description

Site connection unit, earthing sleeve position 6h, rated current 16A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA168127R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.74 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	208x179x0.125 mm
EAN code	7392696681278
Product group	SI
scip	6232ed90-8c75-4ee2-af98-60e70601b727 Czech Republic (CZ)
color	Red
eclass	27440501
unspsc	39121406
function	Site connection unit
standards	IEC 60309-1, -2
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
cable length	0 m
product name	Industrial Adaptor
sub-function	The enclosure has a terminal block to supply distribution boards in sheds.Tube entry Ø 25.5mm
suitable for	416A6
frequency (f)	50 Hz60 Hz
mounting holes	80x158
order multiple	1 piece
connection type	Screw Clamp
number of poles	5
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2417447
e-number (sweden)	E2417447
product main type	Adaptor
reach declaration	https://library.abb.com/d/2CMC700005D0001
e-number (finland)	2421505
rated current (in)	16 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
invoice description	Ind. P&S#416A6
degree of protection	IP44
additional information	3P+N+E
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
