ABB

2CMA168169R1000

Name: 2CMA168169R1000
Brand: ABB
Availability: PreOrder

Product type: 416BSFV6

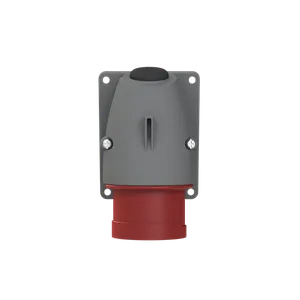

416BSFV6 Phase inverter plugs

Description

Phase sequence changer surface inlet, 6h, 16A, IP44, 3P+N+E Clock Position Of Grounding Contact 6 hour Color code Red, Use flexible connection cables, that comply with the requirements in 60245 IEC 53 or 60245 IEC 66. The cable conductors should be mounted with slack to permit the inverting operation.

Low Voltage Products and Systems
Industrial Plugs and Sockets
Special Plugs & Sockets
Phase Sequence Products

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA168169R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.19 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	79x81x0.081 mm
EAN code	7392696681698
Product group	SI
color	Red
design	Surface mounted plug
eclass	27440524
unspsc	39120000
function	Wall mounted inlet with phase inverter
standards	IEC 60309-1, -2
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Phase inverter plugs
suitable for	416BSFV6
frequency (f)	50 Hz60 Hz
cb certificate	https://library.abb.com/d/2CHC660152X0201
mounting holes	91x67
order multiple	10 piece
connection type	Screw
number of poles	5
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (sweden)	2416003
product main type	EBSFV
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1614202
rated current (in)	16 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
installation manual	https://library.abb.com/d/2CMC710006K0001, 2CMC700041M0002
invoice description	IND. P&S#416BSFV6
degree of protection	IP44
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
