ABB

2CMA168498R1000

Name: 2CMA168498R1000
Brand: ABB
Availability: PreOrder

Product type: 432RL6W

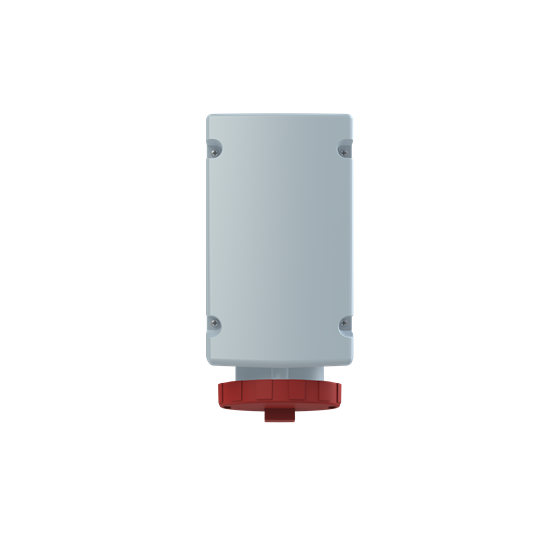

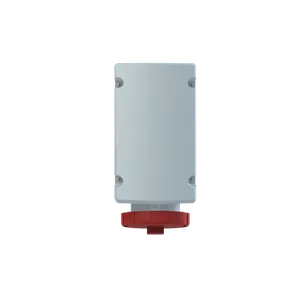

432RL6W Industrial Socket Outlet for Looping

Description

Surface socket-outlet for looping, earthing sleeve position 6h, rated current 32A, IP67 watertight, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Tough & Safe
Socket Outlets for Looping

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA168498R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.7 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	120x253x0.253 mm
EAN code	7392696684989
Product group	SI
color	Red
eclass	27440510
unspsc	39120000
function	Surface socket outlet for looping
standards	IEC 60309-1, -2
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Industrial Socket Outlet for Looping
suitable for	Socket Outlets for Looping
frequency (f)	50 Hz60 Hz
cable diameter	13 ... 21.5 mm
mounting holes	171x90
order multiple	1 piece
connection type	Screw
number of poles	5
protection type	Watertight
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	2417525
e-number (sweden)	E2417525
product main type	TRL
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1613211
e-number (finland)	2421733
rated current (in)	32 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
cable cross-section	2.5 ... 10 mm2
installation manual	https://library.abb.com/d/2CMC000033M0001
invoice description	Ind. P&S#432RL6W
mechanical drawings	https://library.abb.com/d/9AKK107991A3880
cable entry position	Cable entry, knock-outs 2xØ25mm
degree of protection	IP67
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
