ABB

2CMA168984R1000

Name: 2CMA168984R1000
Brand: ABB
Availability: PreOrder

Product type: MPR32/1MS

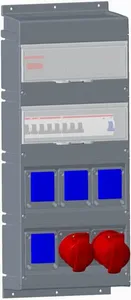

MPR32/1MS Modular Combi

Description

Modular Combi Plastic, 1x16A 3P+N+E, 1x32A 3P+N+E, 4x Schuko outlets (1P+E) 10/16A, IP44, Disconnector OT80F3, 2x MCB S201-C16 , 1x MCB S203-C16, 1xMCB S203-C32, RCD F204 A-63/0,03, Cable entry, 4 knock-outs at the top, 2xØ40mm and 2xØ25mm, Three at the bottom 3xØ47mm

Low Voltage Products and Systems
Industrial Plugs and Sockets
Modular Combination Boxes

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA168984R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.7 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	250x560x0.62 mm
EAN code	7392696689847
Product group	SI
color	Grey
eclass	27440501
unspsc	39121406
function	Combination box
standards	IEC 61439-1IEC 61439-2
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
cable length	0 m
product name	Modular Combi
suitable for	MPR32/1MS
frequency (f)	50 Hz60 Hz
mounting type	Wall mounting
number of rcds	1
order multiple	1 piece
connection type	Screw Clamp
number of poles	5
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0004
e-number (norway)	2466363
e-number (sweden)	E2466363
product main type	MPR
reach declaration	https://library.abb.com/d/2CMC700005D0004
semko certificate	https://library.abb.com/d/2CHC660099X0201
e-number (finland)	3405174
rated current (in)	32 A
rated voltage (ur)	346 ... 415 V
ambient temperature	-25 ... 40 °C
cable cross-section	16 mm2
installation manual	https://library.abb.com/d/2CMC000026M0001
invoice description	Ind. P&S#MPR32/1MS
number of rcds 30ma	1
cable entry position	Cable entry, 4 knock-outs at the top, 2xØ40mm and 2xØ25mm, Three at the bottom 3xØ47mm
degree of protection	IP44
additional information	Cable entry, 4 knock-outs at the top, 2xØ40mm and 2xØ25mm, Three at the bottom 3xØ47mm
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000057M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0004
