ABB

2CMA170011R1000

Name: 2CMA170011R1000
Brand: ABB
Availability: PreOrder

Product type: 316RAM5

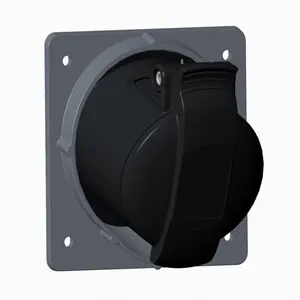

316RAM5 Panel mounted socket

Description

Panel mounted socket, earthing sleeve position 5h, rated current 16A, IP44 splashproof, minimized flange, angled, 3-poles+earth, frequency 50-60 Hz, color code black

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Socket Outlets for Panel Mounting

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA170011R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.24 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	83x89x0.099 mm
EAN code	7392696700115
Product group	SI
color	Black
eclass	27440504
unspsc	39121406
function	Panel mounted socket
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted socket
frequency (f)	50 Hz60 Hz
mounting type	Minimized angled flange
cable diameter	13 ... 17 mm
cb certificate	https://library.abb.com/d/2CHC660153X0201
mounting holes	66x66
order multiple	10 piece
connection type	Screw
number of poles	4
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1564549
e-number (sweden)	2416467
product main type	ERAM
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1614201
tightening torque	WireClamp0.8 N·m
e-number (finland)	2409547
rated current (in)	16 A
rated voltage (ur)	600 ... 690 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
invoice description	Ind. P&S#316RAM5
rated frequency (f)	50...60 Hz
degree of protection	IP44
additional information	3P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
