ABB

2CMA178301R1000

Name: 2CMA178301R1000
Brand: ABB
Availability: PreOrder

Product type: CUE 416-6+R/UJP

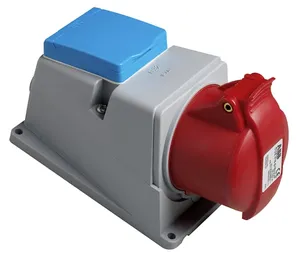

CUE 416-6+R/UJP Wall mounted IEC socket with domestic socket

Description

Wall mounted socket IEC and 2 pole German outlet, earthing sleeve position 6h, rated current 16A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Special Plugs & Sockets
Appliances

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA178301R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.32 KG / psc.
Commodity number	85389099
Country of origin	CZ
Dimensions (WxHxD)	82x112x0.17 mm
EAN code	7392696783019
Product group	SI
color	Red
eclass	27440510
unspsc	39121406
function	Wall mounted IEC socket with domestic socket
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
cable length	0 m
product name	Wall mounted IEC socket with domestic socket
sub-function	Socket outlet with 2 pole schuko 16A
suitable for	CUE 416-6+R/UJP
frequency (f)	50 Hz60 Hz
mounting type	Wall mounting
mounting holes	120x72
order multiple	10 piece
connection type	Screw Clamp
number of poles	5
housing material	Thermoplastic (PBT)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1562922
e-number (sweden)	E2416014
product main type	CUE
reach declaration	https://library.abb.com/d/2CMC700005D0003
semko certificate	https://library.abb.com/d/1618716
tightening torque	WireClamp0.8 N·m
e-number (finland)	2409501
rated current (in)	16 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
installation manual	https://library.abb.com/d/2CMC000050M0001
invoice description	Ind. P&S#CUE 416-6+R/UJP
degree of protection	IP44
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0003
