ABB

2CMA192636R1000

Name: 2CMA192636R1000
Brand: ABB
Availability: PreOrder

Product type: 416R6 B100

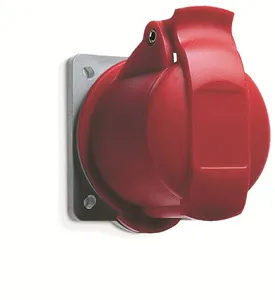

416R6 B100 Panel mounted socket

Description

Socket Outlet Panel Mounting, earthing sleeve position 6h, rated current 16A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Socket Outlets for Panel Mounting

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA192636R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 100

Product Specifications

Product Attribute	Attribute Value
Weight	0.17 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	66x89x0.091 mm
EAN code	7392696926362
Product group	SI
color	Red
eclass	27440504
unspsc	39120000
function	Socket outlet for panel mounting
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 9005 - Jet Black
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted socket
suitable for	Socket Outlets for Panel Mounting
frequency (f)	50 Hz60 Hz
mounting type	minimized flange, straight
cable diameter	13 ... 17 mm
mounting holes	51x51
order multiple	100 piece
connection type	Screw
number of poles	5
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (sweden)	19614430
product main type	ER
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1613211
tightening torque	WireClamp0.8 N·m
rated current (in)	16 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
invoice description	Ind. P&S#416R6 "B100"
rated frequency (f)	50...60 Hz
cable entry position	Cable entry, flexible membrane and metric threaded M20 insert for top cable entry.Rear knock-out cable entry.
degree of protection	IP44
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
