ABB

2CMA193099R1000

Name: 2CMA193099R1000
Brand: ABB
Availability: PreOrder

Product type: 216RS9

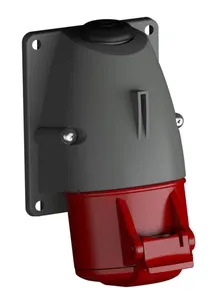

216RS9 Wall mounted socket

Description

Wall mounted socket, earthing sleeve position 9h, rated current 16A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Surface Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA193099R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.22 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	66x91x0.117 mm
EAN code	7392696930994
Product group	SI
color	Red
eclass	27440510
unspsc	39121406
function	Wall mounted socket
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Wall mounted socket
frequency (f)	50 Hz60 Hz
mounting type	Angled
cable diameter	18 mm
mounting holes	75x54
order multiple	10 piece
connection type	Screw
number of poles	3
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1542303
e-number (sweden)	E2416444
product main type	ERS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1613211
tightening torque	WireClamp0.8 N·m
e-number (finland)	2421831
rated current (in)	16 A
rated voltage (ur)	380 ... 415 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
installation manual	https://library.abb.com/d/2CMC700014C0016
invoice description	Ind. P&S#216RS9
mechanical drawings	https://library.abb.com/d/9AKK107680A0703
cable entry position	Cable entry, flexible membrane and metric threaded M20 insert for top cable entry.Rear knock-out cable entry.
degree of protection	IP44
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
