ABB

2CMA193115R1000

Name: 2CMA193115R1000
Brand: ABB
Availability: PreOrder

Product type: 416RS6

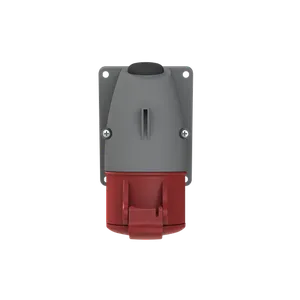

416RS6 Wall mounted socket

Description

Wall mounted socket, earthing sleeve position 6h, rated current 16A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code Red

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Surface Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA193115R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.26 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	79x104x0.134 mm
EAN code	7392696931151
Product group	SI
color	Red
eclass	27440510
unspsc	39121406
function	Wall mounted socket
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Wall mounted socket
suitable for	Surface Socket Outlets
frequency (f)	50 Hz60 Hz
mounting type	Angled
cable diameter	18 mm
mounting holes	91x67
order multiple	10 piece
connection type	Screw
number of poles	5
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1542323
e-number (sweden)	E2416456
product main type	ERS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/1613211
tightening torque	WireClamp0.8 N·m
e-number (finland)	2421206
rated current (in)	16 A
rated voltage (ur)	200/346 ... 240/415 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
installation manual	https://library.abb.com/d/2CMC700014C0016
invoice description	Ind. P&S#416RS6
mechanical drawings	https://library.abb.com/d/9AKK107991A3782
cable entry position	Cable entry, flexible membrane and metric threaded M20 insert for top cable entry.Rear knock-out cable entry.
degree of protection	IP44
additional information	3P+N+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
