ABB

2CMA193291R1000

Name: 2CMA193291R1000
Brand: ABB
Availability: PreOrder

Product type: 216BS9

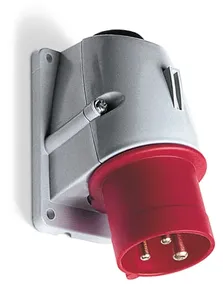

216BS9 Wall mounted inlet

Description

Wall mounted inlet, earthing sleeve position 9h, rated current 16A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code red

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA193291R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.15 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	65x66x0.115 mm
EAN code	7392696932912
Product group	SI
color	Red
design	Surface mounted plug
eclass	27440519
unspsc	39121406
function	Wall mounted inlet
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 7012 - Basalt Grey
rohs status	Following EU Directive 2011/65/EU
product name	Wall mounted inlet
frequency (f)	50 Hz60 Hz
mounting type	Angled
cable diameter	18 mm
mounting holes	75x54
order multiple	10 piece
connection type	Screw
number of poles	3
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1542363
e-number (sweden)	E2417163
product main type	EBS
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/2CHC660161X0201
tightening torque	WireClamp0.8 N·m
e-number (finland)	2421841
rated current (in)	16 A
rated voltage (ur)	380 ... 415 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
invoice description	Ind. P&S#216BS9
mechanical drawings	https://library.abb.com/d/9AKK107680A3028
rated frequency (f)	50 ... 60 Hz
degree of protection	IP44
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
