ABB

2CMA193338R1000

Name: 2CMA193338R1000
Brand: ABB
Availability: PreOrder

Product type: 216B6

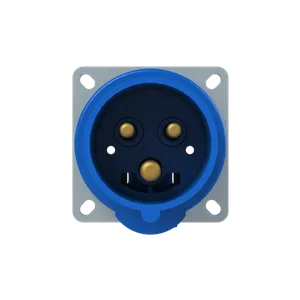

216B6 Panel mounted inlet

Description

Panel mounted inlet, minimized flange, straight, earthing sleeve position 6h, rated current 16A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code Blue

Low Voltage Products and Systems
Industrial Plugs and Sockets
Easy & Safe
Inlets for Panel Mounting

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CMA193338R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 10

Product Specifications

Product Attribute	Attribute Value
Weight	0.1 KG / psc.
Commodity number	85366990
Country of origin	CZ
Dimensions (WxHxD)	56x60x0.068 mm
EAN code	7392696933384
Product group	SI
color	Blue
design	Surface mounted plug
eclass	27440519
unspsc	39121406
function	Panel mounted inlet
standards	IEC 60309-1, -2
wire size	14 ... 12 AWG
ral number	RAL 7001 - Silver Grey
rohs status	Following EU Directive 2011/65/EU
product name	Panel mounted inlet
suitable for	Inlets for Panel Mounting
frequency (f)	50 Hz60 Hz
mounting type	Minimized straight flange
cable diameter	6 ... 13 mm
mounting holes	45x45
order multiple	10 piece
connection type	Screw
number of poles	3
protection type	Splashproof
housing material	Plastic (PA)
rohs information	https://library.abb.com/d/2CMC700005D0001
e-number (norway)	1544002
e-number (sweden)	E2417331
product main type	EB
reach declaration	https://library.abb.com/d/2CMC700005D0001
semko certificate	https://library.abb.com/d/2CHC660161X0201
tightening torque	WireClamp0.8 N·m
e-number (finland)	2421532
rated current (in)	16 A
rated voltage (ur)	200 ... 250 V
ambient temperature	-25 ... 40 °C
cable cross-section	1.5 ... 4 mm2
invoice description	Ind. P&S#216B6
rated frequency (f)	50 ... 60 Hz
degree of protection	IP44
additional information	2P+E
recommended screw driver	PH2
environmental information	https://library.abb.com/d/2CMC000056M0000
suitable for product class	IEC Industrial Plugs and Sockets
declaration of conformity - ce	https://library.abb.com/d/2CMC700005D0001
