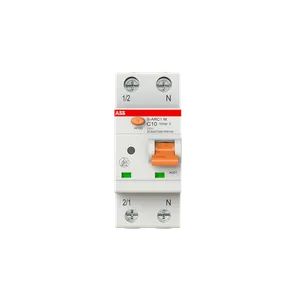

| Weight | 0.18 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | IT |
| Dimensions (WxHxD) | 0.035x0.085x0.069 m |
| EAN code | 8012542339717 |
| Product group | AO |
| cn8 | 85363010 |
| eclass | V11.0 : 27141906 |
| etim 7 | EC002694 - Miniature circuit breaker (MCB) with auxiliary device |
| etim 8 | EC002694 - Miniature circuit breaker (MCB) with auxiliary device |
| includes | Fire protection switch |
| standards | IEC 62606EN 62606IEC 60898-1EN 60898-1 |
| cable size | 25 mm2 |
| power loss | 2.0 W |
| rohs status | Following EU Directive 2011/65/EU |
| housing type | Insulation group I, RAL 7035 |
| release type | C |
| actuator type | Toggle - Insulation group II, Orange RAL 2004, sealable in ON-OFF-positions |
| frequency (f) | 50 Hz |
| mounting type | on DIN rail EN 60715 (35 mm) by means of mounting clip |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| accessory type | Auxiliary contactSignal contact / auxiliary contactShunt tripUndervoltage releaseOvervoltage release |
| weee b2c / b2b | Business To Consumer |
| number of poles | 2 |
| pollution degree | 2 |
| rohs information | https://library.abb.com/d/9AKK107045A1564 |
| e-number (sweden) | 2100163 |
| mounting position | Any |
| tightening torque | 2.8 N·m |
| e-number (finland) | 3211064 |
| eplan catalog tree | Electrical engineering / Protection devices / General |
| input voltage type | AC |
| rated current (in) | 10 A |
| rated voltage (ur) | 230 V |
| built-in depth (t2) | 69 mm |
| connecting capacity | Busbar 10 mm2Rigid 1 ... 25 mm2Flexible 1 ... 25 mm2 |
| rated frequency (f) | 50...60 Hz |
| screw terminal type | Failsafe Bi-directional Cylinder-lift Terminal |
| degree of protection | Housing IP40Terminals IP20 |
| electrical endurance | 10000 cycle |
| overvoltage category | III |
| accessories available | Yes |
| energy limiting class | 3 |
| wire stripping length | 12 mm |
| ambient air temperature | Operation -25 ... 55 °CStorage -40 ... 70 °C |
| auxiliary voltage ac/dc | 230 V |
| dielectric test voltage | 2.5 kV |
| power supply connection | Arbitrary |
| tripping characteristic | C |
| environmental conditions | 53 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 % |
| number of protected poles | 1 |
| rated operational voltage | 230-240 V AC |
| object classification code | F |
| contact position indication | Red ON / Green OFF |
| mechanical endurance (nendu) | 20000 cycle |
| position of neutral terminals | Right |
| rated insulation voltage (ui) | 500 V AC |
| declaration of conformity - ce | https://library.abb.com/d/9AKK107045A1563 |
| mounting position of accessories | Right |
| data sheet, technical information | https://library.abb.com/d/2CDC420032D0201 |
| reference ambient air temperature | 30 °C |
| rated short-circuit capacity (icn) | 10 kA |
| width in number of modular spacings | 2 |
| primary rated impulse withstand voltage | 4 kV |
| resistance to shock acc. to iec 60068-2-27 | 25g / 2 shocks / 13 ms |
| rated residual breaking capacity (iδm) | 6000 A |
| rated conditional short-circuit current (inc) | 10 kA |
| resistance to vibrations acc. to iec 60068-2-6 | 0.2 mm or 5 g - 20 cycles at 5...150...5 Hz |
| rated service short-circuit breaking capacity (ics) | 7.5 kA |
| rated ultimate short-circuit breaking capacity (icu) | 10 kA |
