ABB

2CSB202592R1400

Product type: DDA202 B-40/0.03 AP-R

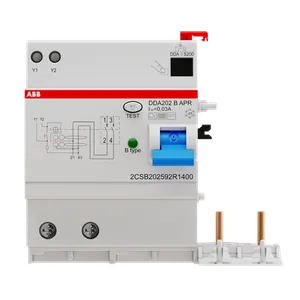

Residual Current Device Block DDA200 - 2P - 30 mA - 40 A - Type B

Datasheet

RoHS Compliant

Description

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. Type B is also sensitive to continuous current pulsating earth fault currents. They are used for protection in installations with electronic equipment according to EN 50178. Applications: tertiary and industrial. DDA202 B-40/0.03 AP-R

Low Voltage Products and Systems
Modular DIN Rail Products
Residual Current Devices RCDs
Residual Current Devices RCD Blocks

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSB202592R1400.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.29 KG / psc.
Commodity number	85363030
Country of origin	IT
Dimensions (WxHxD)	0.105x0.093x0.076 m
EAN code	8012542515128
Product group	AM
cn8	85363030
eclass	V11.0 : 27142210
etim 7	EC002297 - Residual current circuit breaker (RCCB) module
etim 8	EC002297 - Residual current circuit breaker (RCCB) module
standards	IEC/EN 61009 Ann. GIEC/EN 62423
power loss	3.2 W
rohs status	Following EU Directive 2011/65/EU
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	2
options provided	-
rohs information	https://library.abb.com/d/9AKK106713A5614
rated current (in)	40 A
rated voltage (ur)	230...230 V
ambient temperature	-25...55 °C
connecting capacity	Rigid 25 ... 25 mm2Flexible 25 ... 25 mm2
rated frequency (f)	50/60 Hz
degree of protection	IP2X
electrical endurance	10000 cycle
leakage current type	B
maximum surge current	3 kA
rated residual current	30 mA
ambient air temperature	Operation -25...55 °C
power supply connection	Arbitrary
operating characteristic	Instantaneous (APR High Immunity)
type of residual current	B type
environmental information	https://library.abb.com/d/Refer to RoHS
rated operational voltage	230 V
object classification code	F
rated insulation voltage (ui)	500 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5614
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
short-circuit current rating (sccr)	0.03 ... 0.03 A
rated impulse withstand voltage (uimp)	4 kV
resistance to shock acc. to iec 60068-2-27	25g / 2 shocks / 13 ms
resistance to vibrations acc. to iec 60068-2-6	0.1 mm or 1 g - 20 cycles at 5...150...5 Hz
