ABB

2CSB204701R3630

Product type: DDA204 A-63/0.3 AE

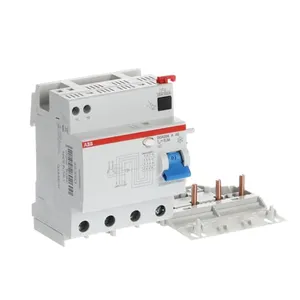

Residual Current Device Block DDA200 - 4P - 300 mA - 63 A - Type A

Datasheet

RoHS Compliant

Description

The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. It is provided with two additional contacts to be used in emergency circuits for remote opening in positive safety. Applications: commercial, industrial. DDA204 A-63/0.3 AE

Low Voltage Products and Systems
Modular DIN Rail Products
Residual Current Devices RCDs
Residual Current Devices RCD Blocks

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSB204701R3630.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.311 KG / psc.
Commodity number	85362010
Country of origin	IT
Dimensions (WxHxD)	0.14x0.093x0.076 m
EAN code	8012542802600
Product group	AM
cn8	85363030
eclass	V11.0 : 27142210
etim 7	EC002297 - Residual current circuit breaker (RCCB) module
etim 8	EC002297 - Residual current circuit breaker (RCCB) module
standards	IEC/EN 61009 Ann. G
power loss	7.6 W
application	For emergency stop
rohs status	Following EU Directive 2011/65/EU
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	4
options provided	For emergency stop
rohs information	https://library.abb.com/d/9AKK106713A5614
rated current (in)	63 A
rated voltage (ur)	230/400 V
ambient temperature	-25...55 °C
connecting capacity	Rigid 25 ... 25 mm2Flexible 25 ... 25 mm2
rated frequency (f)	50/60 Hz
degree of protection	IP2X
electrical endurance	10000 cycle
leakage current type	A
rated residual current	300 mA
ambient air temperature	Operation -25...55 °C
power supply connection	Arbitrary
operating characteristic	Instantaneous (AE for Emergency Stop)
type of residual current	A type
environmental information	https://library.abb.com/d/2CSC427001K2701
rated operational voltage	230/400 V
object classification code	F
rated insulation voltage (ui)	500 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5614
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
short-circuit current rating (sccr)	0.3 ... 0.3 A
rated impulse withstand voltage (uimp)	4 kV
resistance to shock acc. to iec 60068-2-27	25g / 2 shocks / 13 ms
resistance to vibrations acc. to iec 60068-2-6	0.1 mm or 1 g - 20 cycles at 5...150...5 Hz
