ABB

2CSF200997R0013

Product type: F2C-CM

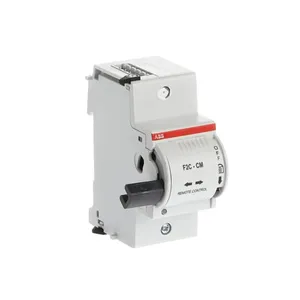

F2C-CM Motor operating device

Datasheet

Description

The F2C-CM motor operating device has the function to allow the remote control (opening or closing) of the RCD it is associated to. It can assembled to 2 and 4 pole RCDs of F200 range.

Low Voltage Products and Systems
Modular DIN Rail Products
Residual Current Devices RCDs
Residual Current Devices RCDs Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSF200997R0013.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.163 KG / psc.
Commodity number	85389099
Country of origin	IT
Dimensions (WxHxD)	36x89x81 mm
EAN code	8012542026556
Product group	AM
cn8	85389099
eclass	V11.0 : 27143502
etim 7	EC001286 - Auxiliary device for distribution board devices
etim 8	EC001286 - Auxiliary device for distribution board devices
power loss	1.5 W
rohs status	Following EU Directive 2011/65/EU
suitable for	F200 A up to 100AF200 B up to 63 AF200 FF200 AS
mounting type	Din-Rail
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
pollution degree	2
rohs information	https://library.abb.com/d/Refer to Declaration of Conformity CE
e-number (sweden)	2160192
input voltage type	AC/DC
number of switches	0
rated voltage (ur)	12 V
connecting capacity	2.5 mm2
operational voltage	12 ... 30 +10% –15% V AC12 ... 48 +10% –15% V DC
rated frequency (f)	AC 50 ... 60 Hz
degree of protection	Enclosure with Cover IP20
electrical endurance	20000 cycle
number of contacts co	0
number of contacts nc	0
number of contacts no	0
ambient air temperature	Operation -25 ... +55 °CStorage -40 ... +70 °C
environmental information	https://library.abb.com/d/Refer to RoHS
object classification code	Q
power consumption (@pcons)	12 V AC - < 16 V·A24 V AC - < 27 V·A30 V AC - < 28 V·A12...48 V DC - < 22 V·A
suitable for product class	Residual Current Devices RCDs
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5575
data sheet, technical information	https://library.abb.com/d/9AKK107046A5456
number of auxiliary contacts co (spdt)	1
