ABB

2CSF302130R1250

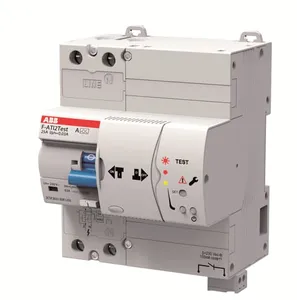

Product type: F-ATI2Test A-25/0.03

RCD With Automatic Test F-ATI Test - 2P - 30 mA - 25 A - Type A

Datasheet

RoHS Compliant

Description

F-ATI and F-ARI Test are RCCBs equipped with automatic test features. RCCBs are supposed to be checked periodically in order to make sure that the contacts are working properly and the device is able to trip in case of leakage to earth. This swift operation affects the operational continuity of the circuits downstream. F-ATI and F-ARI Test ranges push the periodic test to another level as this is run automatically and with no downtime. Therefore, also the operations carried out by maintenance personnel are reduced to the very minimum. In addition to the automatic test, F-ARI Range features a reclosing unit that tries to reclose the RCCB as it trips. The reclosing operations are based on an insulation check to make sure that no permanent fault is present. F-ATI2Test A-25/0.03

Low Voltage Products and Systems
Modular DIN Rail Products
Residual Current Devices RCDs
RCDs with Automatic Test

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSF302130R1250.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.57 KG / psc.
Commodity number	85363030
Country of origin	PT
Dimensions (WxHxD)	0.09x0.115x0.08 m
EAN code	8012542288855
Product group	AM
cn8	85363030
eclass	V11.0 : 27142211
etim 7	EC002693 - Residual current circuit breaker (RCCB) with auxiliary device
etim 8	EC002693 - Residual current circuit breaker (RCCB) with auxiliary device
standards	EN 61008VDE V 0664-120 (annex M)
power loss	2.2 W
rohs status	Following EU Directive 2011/65/EU
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	2
pollution degree	2
rohs information	https://library.abb.com/d/Refer to Declaration of Conformity CE
e-number (finland)	3211238
eplan catalog tree	Electrical engineering / Protection devices / Ground fault current circuit breaker
rated current (in)	25 A
rated voltage (ur)	230 V
ambient temperature	-25...60 °C
built-in depth (t2)	80 mm
rated cross-section	1 - Solid-Core 1 ... 35 mm24 - Multi-Wired 1 ... 35 mm2
rated frequency (f)	50 Hz
degree of protection	IP20
leakage current type	A
maximum surge current	3 kA
rated residual current	30 mA
ambient air temperature	Operation -25...60 °C
operating characteristic	Instantaneous (APR High Immunity)
type of residual current	A type
environmental information	https://library.abb.com/d/Refer to Declaration of Conformity CE
rated operational voltage	230 ... 400 V AC
object classification code	Q
position of neutral terminals	Right
rated insulation voltage (ui)	500 V
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5938
data sheet, technical information	https://library.abb.com/d/9AKK106930A8017
width in number of modular spacings	5
rated impulse withstand voltage (uimp)	4 kV
rated conditional short-circuit current (inc)	10 kA
rated service short-circuit breaking capacity (ics)	1 kA
