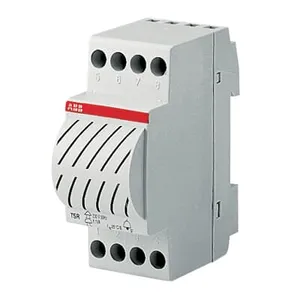

2CSM100000R0831
ABB

2CSM100000R0831

Product type: TSR

TSR Bell and buzzer

RoHS Compliant

Description

Bell characterized by discontinuous use through one or more pushbuttons, suitable for public and tertiary acoustic signalling. TSR
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Command and Signalling Devices
  • Bells and Buzzers
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.3 KG / psc.
Commodity number85318040
Country of originIT
Dimensions (WxHxD)0.035x0.085x0.075 m
EAN code8012542369608
Product groupAR
cn8 85043121
eclass V11.0 : 27031190
etim 7 EC001547 - Bell transformer
etim 8 EC001547 - Bell transformer
remarks Discontinous operations: the device need rest time between two consecutive functionings
standards EN 62080
rohs status Following EU Directive 2002/95/EC August 18, 2005 and amendment
sound db (a) Bell (1 m) 80 dBBuzzer (1 m) 70 dBThreetones (1 m) 84 dB
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b Business To Consumer
primary voltage 230 V AC
options provided Transformer included
rohs information https://library.abb.com/d/2CSC446002K0201
mounting position Vertical only
sound / tone type Intermittent
product net length 65 mm
cable cross-section Maximum 10 mm2
rated frequency (f) 50 Hz
degree of protection IP40
environmental information https://library.abb.com/d/See RoHS Information
rated operational voltage 230 V AC
object classification code H
power consumption (@pcons) 5.5 V·A
declaration of conformity - ce https://library.abb.com/d/2CSC446012D2702
data sheet, technical information https://library.abb.com/d/9AKK107991A8334
width in number of modular spacings 2
