ABB

2CSM111310R1331

Product type: SQZ3

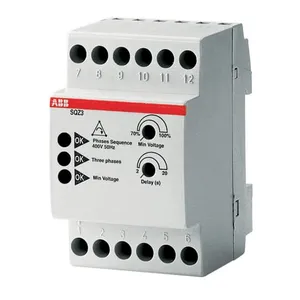

SQZ3 Phase and sequence relay

Datasheet

RoHS Compliant

Description

The SQZ3 relay performs the following monitoring functions in three-phase networks at 400 V AC for phase sequence, phase failure and minimum voltage (adjustable, max. 70% of Vn). If one of the three faults is detected, the output relay (safety switching contact) intervenes with one of contact) intervenes with a delay adjustable from 2 to 20 s only at minimum voltage and controls the following controls the following: Audible alarms, motor control contactors, circuit breakers with coils SQZ3

Low Voltage Products and Systems
Modular DIN Rail Products
Protection and Safety Devices
Protection Relays

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM111310R1331.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.25 KG / psc.
Commodity number	85364900
Country of origin	IT
Dimensions (WxHxD)	0.065x0.08x0.1 m
EAN code	8012542372004
Product group	AR
cn8	90303100
eclass	V11.0 : 27200310
etim 7	EC001189 - Phase sequence indicator
etim 8	EC001189 - Phase sequence indicator
power loss	at Rated Operating Conditions per Pole 1.5 W
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
contact type	Change-Over (CO)
frequency (f)	50...60 Hz
product range	Phase and sequence relay, SQZ
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
rohs information	https://library.abb.com/d/2CSC443006K0201
type of indicator	LED
eplan catalog tree	Electrical engineering / Relays, contactors / General
rated voltage (ur)	400 V AC
delay time (τ)	min. volt. only 2...20 second [unit of time]
rated frequency (f)	50-60 Hz
degree of protection	IP20
ambient air temperature	Operation -10...+55 °C
environmental information	https://library.abb.com/d/See RoHS Information
object classification code	K
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/9AKK106930A8017
number of modular spacings per din rail	3
