2CSM180050R1021
ABB

2CSM180050R1021

Product type: DMTME-I-485

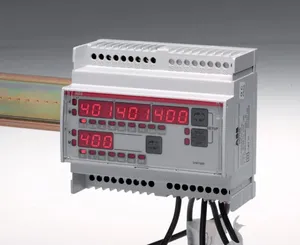

DMTME-I-485 Multimeter

Description

DMTME-I-485 is a modular digital multimeter for measurement of main electrical parameters, with two digital outputs and embedded RS485.
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Energy Efficiency Devices
  • Network Analyzers and Multimeters
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.43 KG / psc.
Commodity number90303100
Country of originRO
Dimensions (WxHxD)105x26.5x58 mm
EAN code8012542975809
Product groupAY
cn8 90303100
eclass V11.0 : 27200301
etim 7 EC000069 - Multimeter
etim 8 EC000069 - Multimeter
accuracy Active Energy ±1%
i/o option 2 digital outputs
rohs status Following EU Directive 2011/65/EU
communication Modbus RTU
mounting type DIN-Rail (6 DIN modules)
voltage range 10...500 V
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
current rating 5 A
weee b2c / b2b Business To Consumer
measuring range Maximum Current AC 5 AMaximum Temperature 50 °CMaximum Frequency 500 kHzMaximum Voltage AC 500 VIsolation Resistance 8 ... 8 MΩMaximum Resistance 8 MΩ
measurement type Automatic
number of phases Three-phase
rohs information https://library.abb.com/d/2CSC445014K270
type of indicator Digital
rated voltage (ur) 3 x 230 (400) V
additional information CT (5A)
ambient air temperature Operation 0 ... 50 °C
environmental information https://library.abb.com/d/2CSC445014K270
object classification code P
power consumption (@pcons) 6 V·A
number of digital in/outputs 2 Digital Outputs
declaration of conformity - ce https://library.abb.com/d/9AKK106713A5703
data sheet, technical information https://library.abb.com/d/9AKK107046A0430
