Product type: E 91/32 PV1500e

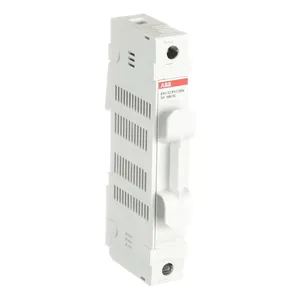

E91/32 PV1500e Fuse holder

Datasheet

RoHS Compliant

Description

E 91/32 PV 1500 is a fuseholder for overcurrent and short circuit protection in PV applications E 91/32 PV1500e

Low Voltage Products and Systems
Modular DIN Rail Products
Protection and Safety Devices
Cylindrical Fuse Holders and Fuse Switch Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM202041R1801.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 5

Product Specifications

Product Attribute	Attribute Value
Weight	0.08 KG / psc.
Commodity number	85361010
Country of origin	RO
Dimensions (WxHxD)	0.023x0.134x0.065 m
EAN code	8012542020417
Product group	AR
cn8	85361010
eclass	V11.0 : 27142121
etim 7	EC002705 - Holder for cylindrical fuse
etim 8	EC002705 - Holder for cylindrical fuse
remarks	For use with CU only 60°C, 75°C or 90°C wire
fuse size	10x85 mm
fuse type	gPV
lock type	Non Padlockable
standards	IEC 60269-1UL 4248-19
power loss	6 W
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
ul certificate	https://library.abb.com/d/9AKK108467A0348
weee b2c / b2b	Business To Business
number of poles	1
tightening torque	2-2.5 N·m
rated current (in)	32 A
rated voltage (ur)	1500 V DC
built-in depth (t2)	65 mm
connecting capacity	Stranded 0.75...25 mm2Rigid 0.75...25 mm2
number of batteries	0
ampere rating ul/csa	30 A
certification agency	CCC, UL
degree of protection	IP20
material of conductor	Copper
ambient air temperature	Operation -5...85 °CStorage -25...85 °C
tightening torque ul/csa	18-22 in·lb
connecting capacity ul/csa	Stranded 14...10 AWGRigid 14...6 AWG
object classification code	F
operating humidity (rhamb)	max. 90% at +20 °C50% at max. +40 °C
rated insulation voltage (ui)	1 kV
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/2CSC444002B0204
width in number of modular spacings	1.3
resistance to shock acc. to iec 60068-2-27	15 g11 ms18 shocks
resistance to vibrations acc. to iec 60068-2-6	2 to 13 Hz x= 1 mm peak13 to 100 Hz y= 0.7 g peak
shock and vibration withstand acc. to iec 61373	Category 1, Class B
