ABB

2CSM204962R1801

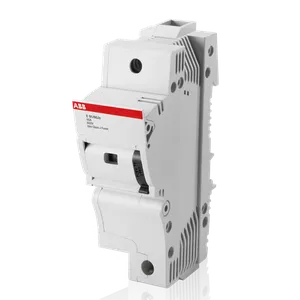

Product type: E 91/60s J

E 91/60s J Fuse holder

Datasheet

RoHS Compliant

Description

E 90 60 J is a fuseholder for overcurrent and short circuit protection specific for class J fuses E 91/60s J

Low Voltage Products and Systems
Modular DIN Rail Products
Protection and Safety Devices
Cylindrical Fuse Holders and Fuse Switch Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM204962R1801.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.175 KG / psc.
Commodity number	85363030
Country of origin	RO
Dimensions (WxHxD)	0.04x0.122x0.074 m
EAN code	8012542354932
Product group	AR
cn8	85363030
eclass	V11.0 : 27142121
etim 7	EC002705 - Holder for cylindrical fuse
etim 8	EC002705 - Holder for cylindrical fuse
remarks	For use with CU only 60°C or 75°C wire
fuse size	27x60 mm
lock type	Padlockable
standards	UL 4248-1UL 4248-8
dimensions	2,5 module
rohs status	Following EU Directive 2011/65/EU
sealing type	Sealing Wire
suitable for	E 90
current range	31-60 A
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
ul certificate	https://library.abb.com/d/9AKK107992A1041
weee b2c / b2b	Business To Business
number of poles	1
options provided	With LED
rohs information	https://library.abb.com/d/2CSC444011K2701
tightening torque	3.5-4 N·m
rated current (in)	60 A
rated voltage (ur)	600 V
built-in depth (t2)	74.05 mm
rated frequency (f)	60 Hz
certification agency	UL
material of conductor	Copper
ambient air temperature	Operation -5...+40 °CStorage -25...+70 °C
recommended screw driver	Pozidriv 2
tightening torque ul/csa	31-35 in·lb
environmental information	https://library.abb.com/d/See RoHS Information
number of protected poles	1
connecting capacity ul/csa	Stranded 1x14...1 AWGStranded 2x14...8 AWGRigid 1x14...10 AWGRigid 2x14...10 AWG
object classification code	F
operating humidity (rhamb)	max. 90% at +20 °C50% at max. +40 °C
suitable for product class	Fuse holders
rated insulation voltage (ui)	1+2*Un kV
declaration of conformity - ce	https://library.abb.com/d/2CSC444002D2701
data sheet, technical information	https://library.abb.com/d/2CSC444002B0204
resistance to shock acc. to iec 60068-2-27	15g 18 shocks 11 ms
resistance to vibrations acc. to iec 60068-2-6	2 to 13 Hz x= 1 mm peak13 to 100 Hz y= 0.7 g peak
shock and vibration withstand acc. to iec 61373	Category 1, Class B
