ABB

2CSM220695R0721

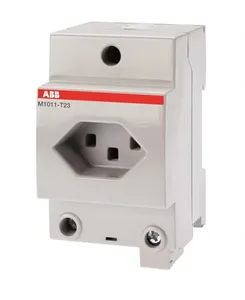

Product type: M1011-T23

Modulare Steckdose schweizer Standard T23 16 A

Datasheet

Description

Modulare Steckdosen ermöglichen den Anschluss von Geräten, Werkzeugen oder elektrischer und elektronischer nicht modularer Ausrüstung in Bau- und Industrie-Schalttafeln. Die Produktgruppe enthält Standardversionen und erweiterte Versionen mit zusätzlichen Ausstattungsmerkmalen wie Leuchtmelder und Klappdeckel. Die Steckdosen sind in unterschiedlichen Länderstandards verfügbar.

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM220695R0721.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.14 KG / psc.
Commodity number	85361010
Country of origin	RO
Dimensions (WxHxD)	0.053x0.085x0.07 m
EAN code	8012542206958
Product group	AR
cn8	85389040
color	Grey
eclass	V11.0 : 27142305
etim 7	EC001663 - Socket outlet for distribution board
etim 8	EC001663 - Socket outlet for distribution board
standards	Swiss Standard SEV 2011
power loss	0.6 W
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
model number	Other
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
sev certificate	https://library.abb.com/d/9AKK107991A9777
rohs information	https://library.abb.com/d/2CCC413008D0206
tightening torque	2.8 N·m
product net length	93 mm
rated current (in)	16 A
rated voltage (ur)	250 V AC
built-in depth (t2)	60 mm
cable cross-section	Minimum 2.5 mm2Maximum 16 mm2
rated frequency (f)	50/60 Hz
certification agency	SEV
degree of protection	IP20
ambient air temperature	Operation -25...+35 °CStorage -40...+70 °C
environmental information	https://library.abb.com/d/See RoHS Information
object classification code	X
declaration of conformity - ce	https://library.abb.com/d/9AKK107492A6968
number of active pin terminals	0
data sheet, technical information	https://library.abb.com/d/2CSC446011B0202
width in number of modular spacings	3
