ABB

2CSM220705R0721

Product type: M1011-T15

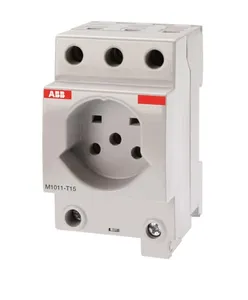

M1011-T15 Socket outlet

Datasheet

RoHS Compliant

Description

The Modular sockets M1011 in grey allow the connection of devices, tools or electrical and electronic non modular equipments in civil and industrial electrical switchboards. The M1011 series, with SEV certification, allows to plug four types of swiss standard plugs, single- and three-phase with currents up to 16 A. They can be mounted on DIN rail or Smissline rails without supply connection. M1011-T15

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Socket Outlets

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM220705R0721.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 2

Product Specifications

Product Attribute	Attribute Value
Weight	0.166 KG / psc.
Commodity number	85361010
Country of origin	RO
Dimensions (WxHxD)	0.053x0.085x0.07 m
EAN code	8012542207054
Product group	AR
cn8	85389040
color	Grey
eclass	V11.0 : 27142305
etim 7	EC001663 - Socket outlet for distribution board
etim 8	EC001663 - Socket outlet for distribution board
standards	Swiss Standard SEV 2011
power loss	0.6 W
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
model number	Other
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
sev certificate	https://library.abb.com/d/9AKK107991A9777
rohs information	https://library.abb.com/d/2CCC413008D0206
tightening torque	2.8 N·m
product net length	93 mm
rated current (in)	16 A
rated voltage (ur)	250 V AC
built-in depth (t2)	60 mm
cable cross-section	Minimum 2.5 mm2Maximum 16 mm2
rated frequency (f)	50/60 Hz
certification agency	SEV
degree of protection	IP20
ambient air temperature	Operation -25...+35 °CStorage -40...+70 °C
environmental information	https://library.abb.com/d/See RoHS Information
object classification code	X
declaration of conformity - ce	https://library.abb.com/d/9AKK107492A6968
number of active pin terminals	0
data sheet, technical information	https://library.abb.com/d/2CSC400002D0210
width in number of modular spacings	3
