ABB

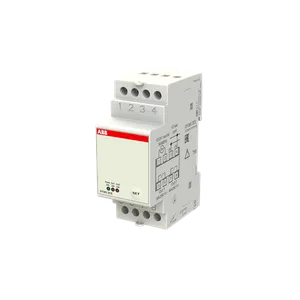

2CSM221191R1000

Product type: DY365 2CE

Kanalerweiterung 2 K Bluetooth Programmierung per App

Datasheet

Description

Kanalerweiterung für digitale Jahreszeitschaltuhr DY365 mit integrierter Bluetooth-Schnittstelle. Erweitert die Jahresuhr auf bis zu 8 Kanäle. Verbindung zum Hauptgerät via RS485-Bus. Signalisierung der Schaltzustände an der Kanalerweiterung über LEDs.

Low Voltage Products and Systems
Modular DIN Rail Products
Control and Automation Devices
Analogue and Digital Time Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM221191R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.185 KG / psc.
Commodity number	85176200
Country of origin	IT
Dimensions (WxHxD)	0.035x0.06x0.087 m
EAN code	8012542211914
Product group	AR
cn8	85364900
eclass	V11.0 : 27200110
etim 7	EC002305 - Digital time switch for distribution board
etim 8	EC002305 - Digital time switch for distribution board
function	Channel extension
standards	EN 60730-2-7EN-301 489-1EN-301 489-3EN-301 489-17EN-301 489-19EN-300 328EN-62479EN-60950-1EN 50581
meter type	Digital
power supply	12 V AC24 V DC
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
supply voltage	12 / 24 V
weee b2c / b2b	Business To Consumer
e-number (sweden)	1330659
tightening torque	0.5 N·m
number of channels	2
rated frequency (f)	50 ... 60 Hz
degree of protection	Housing IP20
ambient air temperature	Operation 0 ... +50 °CStorage -25 ... +70 °C
maximum switching current	16 A
rated operational voltage	12 / 24 V
object classification code	K
power consumption (@pcons)	0.15 W
declaration of conformity - ce	https://library.abb.com/d/2CSC441019D2701
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
