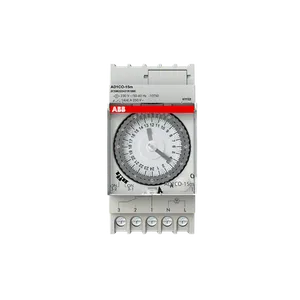

Product type: AD1CO-15m

Analoge Zeitschaltuhr Tagesprogramm 15-min-Takt, 1 Wechsler 230 V AC

Datasheet

Description

Analoge elektromechanische Zeitschaltuhr zur Montage auf Hutschiene zur Steuerung von Verbrauchern. Geeignet zur Beleuchtungssteuerung von Glühlampen, Leuchtstofflampen, Halogenleuchten, Energiesparlampen und LED.

Low Voltage Products and Systems
Modular DIN Rail Products
Control and Automation Devices
Analogue and Digital Time Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM222421R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.112 KG / psc.
Commodity number	85364900
Country of origin	ES
Dimensions (WxHxD)	0.044x0.066x0.088 m
EAN code	8012542224211
Product group	AR
cn8	85364900
eclass	V11.0 : 27200109
etim 7	EC002304 - Analogous time switch for distribution board
etim 8	EC002304 - Analogous time switch for distribution board
accuracy	Operating accuracy: ± 1 second/day at 23°CSwitching accuracy: ± 5 minutes
function	Daily
standards	EN 60730-2-7
meter type	Electromechanical
power loss	0.5 W
contact type	Change-Over (CO)
power supply	(-15%..+10%) 230 V AC
mounting type	DIN rail
terminal type	Captive Screw
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
battery weight	0.004 kg
supply voltage	230 V
weee b2c / b2b	Business To Consumer
dimension diagram	https://library.abb.com/d/9AKK107992A8052
e-number (sweden)	1330666
tightening torque	0.5 N·m
number of channels	ChangeOver
connecting capacity	Solid 4 mm2
number of batteries	0
operational voltage	Maximum (Incl. Tolerance) 195 V ACMaximum (Incl. Tolerance) ...253 V AC
rated frequency (f)	50 ... 60 Hz
degree of protection	Housing IP20
maximum load capacity	Resistive load 16 AInductive Load 4 A
minimum switching time	15 minute [unit of time]
ambient air temperature	Operation -10 ... 50 °CStorage -20 ... 70 °C
maximum switching power	4000 V·AIncandescent 3000 WFluorescent 1200 V·ALow voltage halogen 2000 V·AHalogen 3000 WLow consumption lamp(CFL) 900 V·ALED 100 V·A
rated operational voltage	230 V
object classification code	K
power consumption (@pcons)	0.5 W
battery chemical composition	Nickel-Metal Hydride
declaration of conformity - ce	https://library.abb.com/d/2CSC441017D2701
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
width in number of modular spacings	2.5
