ABB

2CSM222491R1000

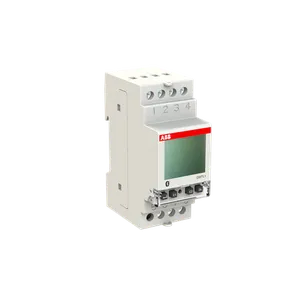

Product type: DWTL1

Wochenzeitschaltuhr 1 Kanal Bluetooth Programmierung per App inkl. Dämmerungsschalter

Datasheet

Description

Digitale Wochenzeitschaltuhr mit integrierter Bluetooth-Schnittstelle und Eingang für Lichtsensor zur App-Programmierung mit Smartphone oder Tablet via App „DBT Timer“. Lichtsensor zur Wandmontage inklusive. Potenzialfreie Wechselkontakte zur zeitabhängigen Steuerung von Betriebsmitteln. Programmierung von Tages-, Wochen-, Ferien-, Impuls-, Zyklus- und Zufallsprogrammen mit bis zu 900 Speicherplätzen. Hohe Sicherheit durch plombierbare Klarsichtabdeckung und Zugriffsschutz über PIN-Code. LED-Last bis 500 W schaltbar. Hinterleuchtetes Display und automatische Umstellung von Sommerzeit/Winterzeit.

Low Voltage Products and Systems
Modular DIN Rail Products
Control and Automation Devices
Analogue and Digital Time Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM222491R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.16 KG / psc.
Commodity number	85364900
Country of origin	IT
Dimensions (WxHxD)	0.035x0.065x0.087 m
EAN code	8012542224914
Product group	AR
cn8	85364900
eclass	V11.0 : 27200110
etim 7	EC002305 - Digital time switch for distribution board
etim 8	EC002305 - Digital time switch for distribution board
accuracy	± 0.5sec/24h
function	Weekly astro and twilight
standards	EN 60730-2-7EN-301 489-17EN-300 328EN-62479EN 50581
meter type	Digital
power loss	2 W
illuminance	3 ... 500 lx
sensor type	Twilight probe
battery life	5 year
battery type	Button Cell
cable length	50 m
contact type	Change-Over (CO)
power supply	230 V AC
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
battery weight	0.003 kg
supply voltage	230 V AC
weee b2c / b2b	Business To Consumer
options provided	With running reserve
rohs information	https://library.abb.com/d/2CSC441018D2701
e-number (sweden)	1330654
tightening torque	0.5 N·m
number of channels	1
connecting capacity	Solid 2.5 mm2
number of batteries	1
operational voltage	195.5 ... 253 V AC
rated frequency (f)	50 ... 60 Hz
degree of protection	Housing IP20
maximum load capacity	16 A10 A
minimum switching time	1 minute [unit of time]
ambient air temperature	Operation -20 ... +50 °CStorage -25 ... +70 °C
maximum switching power	4000 V·A
rated switching capacity	2000 WFluorescentLamps 600 V·A2000 W600 V·A500 W
maximum switching current	16 A
maximum number of programs	120
object classification code	K
power consumption (@pcons)	2 W
battery chemical composition	Lithium
declaration of conformity - ce	https://library.abb.com/d/2CSC441018D2701
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
width in number of modular spacings	2
rated impulse withstand voltage (uimp)	Maximum 4 kV
