ABB

2CSM228555R0812

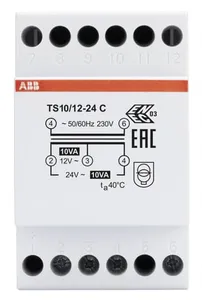

Product type: TS10/12-24 C

Sicherheitstransformator 10 VA, 12-24 V AC

Datasheet

Description

Diese Transformatoren sind bedingt kurzschlussfest. Sie sind mit einer Wärmeschutzvorrichtung ausgestattet, die automatisch wieder die Leistung herstellt, wenn der Transformator ausreichend abgekühlt ist. Sie sind ideal für die Dauerleistungs-Versorgung von Messgeräten, elektronischen Hilfsgeräten (z. B. Messung, Video-Türsprechanlagen, BUS-Kommunikation) und Schaltungen mit Kleinspannungen (SELV) für Bäder und Duschen, Beleuchtung, Brunnen, elektro-medizinische Geräte und dergleichen.

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Bells and safety transformers

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM228555R0812.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.35 KG / psc.
Commodity number	85043121
Country of origin	IT
Dimensions (WxHxD)	0.045x0.085x0.065 m
EAN code	8012542285557
Product group	AR
cn8	85043121
eclass	V11.0 : 27031190
etim 7	EC001547 - Bell transformer
etim 8	EC001547 - Bell transformer
remarks	Suitable for loads that require a continuous supply. Double insulation between primary and secondary windings
standards	IEC/EN 61558-2-6
power loss	< 5 (full load) W
application	Building and Industrial
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
power supply	10 V·A
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
eac certificate	https://library.abb.com/d/9AKK107992A6755
imq certificate	https://library.abb.com/d/9AKK107992A6754
primary voltage	230 V
insulation class	B
options provided	None
rohs information	https://library.abb.com/d/9AKK106713A5646
transformer type	Non - Inherently Short Circuit Proof
secondary current	(2-3) 0.83 A(2-4) 0.42 A(3-4) 0 A
secondary voltage	(2-3) 12 V AC(2-4) 24 V AC(3-4) 0 V AC
tightening torque	0.5 N·m
e-number (finland)	8409003
product net length	65 mm
rated output power	10 W
connecting capacity	2.5 mm2
rated frequency (f)	50/60 Hz
certification agency	IMQ
degree of protection	IP20
connecting capacity ul/csa	14 AWG
object classification code	T
output current maximum (iout)	0.42 A
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5646
data sheet, technical information	https://library.abb.com/d/2CSC000001D0202
width in number of modular spacings	2
