ABB

2CSM228635R0812

Product type: TS16/12

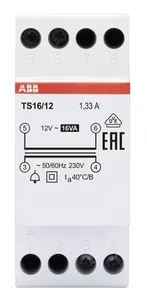

TS16/12 Non-inherently short-circuit proof bell transformer

Datasheet

RoHS Compliant

Description

These transformers with secondary in very low safety voltage for feeding bells are available in 3 series: non-inherently short-circuit proof (TS8), non-inherently short-circuit proof with switch (TS8/SW), non-inherently short-circuit proof (TS16/TS24). TS16/12

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Bells and Safety Transformers

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM228635R0812.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.35 KG / psc.
Commodity number	85043121
Country of origin	RO
Dimensions (WxHxD)	0.035x0.085x0.065 m
EAN code	8012542286356
Product group	AR
cn8	85043121
eclass	V11.0 : 27031190
etim 7	EC001547 - Bell transformer
etim 8	EC001547 - Bell transformer
remarks	Suitable for loads that require a discontinuous supply. Double insulation between primary and secondary windings
standards	IEC/ EN 61558-2-8
power loss	2.5 W
application	Residential
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
power supply	16 V·A
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
eac certificate	https://library.abb.com/d/9AKK107992A6660
primary voltage	230 V
vde certificate	https://library.abb.com/d/9AKK107992A6775
insulation class	B
options provided	None
rohs information	https://library.abb.com/d/2CSC446004K0201
transformer type	Non - Inherently Short Circuit Proof
secondary current	1 A
secondary voltage	12 V AC
tightening torque	0.5 N·m
product net length	65 mm
rated output power	16 W
connecting capacity	2.5 mm2
rated frequency (f)	50/60 Hz
certification agency	IMQ
degree of protection	IP20
connecting capacity ul/csa	14 AWG
object classification code	T
output current maximum (iout)	1.33 A
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/2CSC000001D0202
width in number of modular spacings	2
