2CSM228725R0802
ABB

2CSM228725R0802

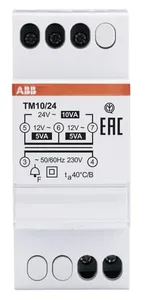

Product type: TM10/24

Klingeltransformator 10 VA, 24 V AC

Description

TM10/24 Klingeltransformator 10VA, 24VAC
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Command and Signalling Devices
  • Bells and safety transformers
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.3 KG / psc.
Commodity number85043121
Country of originRO
Dimensions (WxHxD)0.035x0.085x0.065 m
EAN code8012542287254
Product groupAR
cn8 85043121
eclass V11.0 : 27031190
etim 7 EC001547 - Bell transformer
etim 8 EC001547 - Bell transformer
remarks Suitable for loads that require a discontinuous supply. Double insulation between primary and secondary windings
standards IEC/EN 61558-2-8
power loss 2.5 W
application Residential
rohs status Following EU Directive 2002/95/EC August 18, 2005 and amendment
power supply 10 V·A
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b Business To Consumer
eac certificate https://library.abb.com/d/9AKK107992A6660
imq certificate https://library.abb.com/d/9AKK107992A6756
primary voltage 230 V
insulation class B
options provided None
rohs information https://library.abb.com/d/2CSC446004K0201
transformer type Fail - Safe Bell Transformers
secondary current 0.42 A
secondary voltage (5-6) & (6-7) 12 V AC(5-7) 24 V AC
tightening torque 0.5 N·m
product net length 65 mm
rated output power 10 W
connecting capacity 2.5 mm2
rated frequency (f) 50/60 Hz
certification agency IMQ
degree of protection IP20
connecting capacity ul/csa 14 AWG
object classification code T
output current maximum (iout) 0.83 A
declaration of conformity - ce https://library.abb.com/d/9AKK106713A5640
data sheet, technical information https://library.abb.com/d/2CSC000001D0202
width in number of modular spacings 2
