ABB

2CSM229901R1311

Product type: LCR

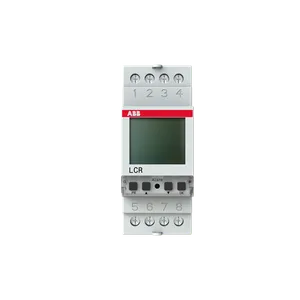

Load management relay LCR

Datasheet

RoHS Compliant

Description

Installed downstream of the main circuit-breaker, it compares the actual power consumption of the system to a preset maximum permitted value, and prevents tripping of the main circuit-breaker by switching off one non-prioritary load when the present threshold is exceeded. LCR

Low Voltage Products and Systems
Modular DIN Rail Products
Control and Automation Devices
Load Management Devices

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM229901R1311.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.135 KG / psc.
Commodity number	85364900
Country of origin	IT
Dimensions (WxHxD)	0.036x0.088x0.065 m
EAN code	8012542299011
Product group	AR
cn8	90303100
eclass	V11.0 : 27142332
etim 7	EC001655 - Load shedding relay for distribution board
etim 8	EC001655 - Load shedding relay for distribution board
remarks	Load OFF conditions are indicated by red LED and integrated buzzers. At preset time intervals, the device automatically attempts toreconnect the previously disabled load
screen size	1.408 in
display type	backlit LCD
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
rohs information	https://library.abb.com/d/9AKK107492A4197
built-in depth (t2)	65 mm
connecting capacity	Rigid max. 4 mm2Flexible max. 6 mm2
delay time (τ)	Load Disconnection 0...9999 second [unit of time]Between Connections 0...9999 second [unit of time]
input voltage (uin)	230 (-15%/+10%) V AC
rated frequency (f)	50/60 Hz
degree of protection	Terminals IP20Front IP51
number of contacts co	0
number of contacts nc	0
number of contacts no	1
ambient air temperature	Operation -10...45 °CStorage -10...65 °C
object classification code	K
operating humidity (rhamb)	max. 90% ( non-condensing)
power consumption (@pcons)	6 V·A
declaration of conformity - ce	https://library.abb.com/d/9AKK107492A4196
data sheet, technical information	https://library.abb.com/d/No document needed
width in number of modular spacings	2
