ABB

2CSM229911R1341

Name: 2CSM229911R1341
Brand: ABB
Availability: PreOrder

Product type: TL1 Pole

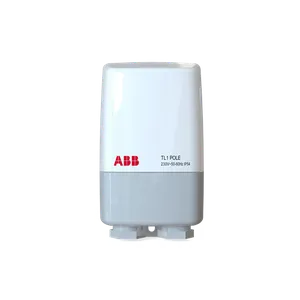

TL1 POLE Twilight switch

RoHS Compliant

Description

TL1 POLE Twiligt switches for pole mounting TL1 Pole

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM229911R1341.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.135 KG / psc.
Commodity number	85364900
Country of origin	AL
Dimensions (WxHxD)	0.035x0.117x0.07 m
EAN code	8012542299110
Product group	AR
cn8	85364900
color	White
eclass	V11.0 : 27144011
etim 7	EC000189 - Twilight switch
etim 8	EC000189 - Twilight switch
function	Twilight
lamp type	LED
standards	EN 60669-1EN 60662-2-1EN 60730-1
lamp color	Red / Green
meter type	Analog
power loss	0.8 W
screw type	PZ1
illuminance	2 ... 200 lx
cable length	100 m
contact type	Normally Open (NO)
power supply	110 ... 230 V AC
mounting type	Pole/Wall
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
supply voltage	110 ... 230 V AC
weee b2c / b2b	Business To Consumer
wiring diagram	https://library.abb.com/d/9AKK107992A8258, https://library.abb.com/d/9AKK107992A8259
eac certificate	https://library.abb.com/d/9AKK108466A2495
rohs information	https://library.abb.com/d/2CSC441016D2703
e-number (sweden)	1301375
tightening torque	1.2 N·m
number of channels	1
connecting capacity	Solid 6 mm2
delay time (τ)	On 22.5 ... 27.5 second [unit of time]Off 31.5 ... 38.5 second [unit of time]
number of batteries	0
rated frequency (f)	50 ... 60 Hz
degree of protection	Housing IP20
ambient air temperature	Operation -40 ... 70 °CStorage -50 ... 80 °C
maximum switching power	1000 W300 W300 W100 W
object classification code	K
power consumption (@pcons)	0.25 W0.8 W
declaration of conformity - ce	https://library.abb.com/d/2CSC441016D2703
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
