ABB

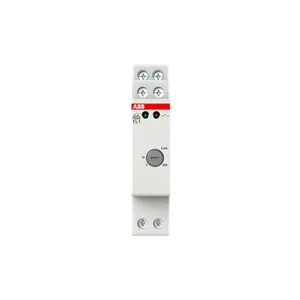

2CSM229921R1341

Product type: TL1

Dämmerungsschalter 2-200 lux, 110-230 V AC, 16 A Lichtsensor enthalten

Datasheet

Description

Dämmerungsschalter zur Montage auf DIN-Hutschiene. Inklusive externem Lichtsensor zur Wandmontage. Erfüllt Standards EN 60669-1, EN 60669-2-1, EN 60730-1. Mit LED-Signalisierung zum Sollwert und Kontaktstatus. Helligkeitswert einstellbar an Gerätefront. Mit Schaltverzögerung zum Vermeiden unnötiger Schaltungen.

Low Voltage Products and Systems
Modular DIN Rail Products
Control and Automation Devices
Twilight Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM229921R1341.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.155 KG / psc.
Commodity number	85364900
Country of origin	AL
Dimensions (WxHxD)	0.018x0.086x0.065 m
EAN code	8012542299219
Product group	AR
cn8	85364900
color	White
eclass	V11.0 : 27144011
etim 7	EC000189 - Twilight switch
etim 8	EC000189 - Twilight switch
function	Twilight
lamp type	LED
standards	EN 60669-1EN 60662-2-1EN 60730-1
lamp color	Red / Green
meter type	Analog
power loss	0.9 W
screw type	PZ1
illuminance	2 ... 200 lx
cable length	100 m
contact type	Normally Open (NO)
power supply	110 ... 230 V AC
mounting type	DIN rail
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
supply voltage	110 ... 230 V AC
weee b2c / b2b	Business To Consumer
wiring diagram	https://library.abb.com/d/9AKK107992A8260
eac certificate	https://library.abb.com/d/9AKK108466A2495
rohs information	https://library.abb.com/d/2CSC441016D2703
e-number (sweden)	1301374
tightening torque	1.2 N·m
e-number (finland)	2619404
number of channels	1
connecting capacity	Solid 6 mm2
delay time (τ)	On 20.7 ... 25.3 second [unit of time]Off 20.7 ... 25.3 second [unit of time]
number of batteries	0
rated frequency (f)	50 ... 60 Hz
degree of protection	Housing IP20
ambient air temperature	Operation -25 ... 55 °CStorage -40 ... 70 °C
maximum switching power	1000 W300 W300 W100 W
object classification code	K
power consumption (@pcons)	0.4 W0.9 W
declaration of conformity - ce	https://library.abb.com/d/2CSC441016D2703
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
width in number of modular spacings	1
