ABB

2CSM232345R0821

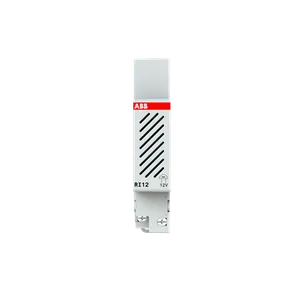

Product type: RI12

Klingel 12 V AC, 50/60 Hz für Hutschiene, diskontinuierlicher Betrieb

Datasheet

Description

Die Auswahl an Klingeln und Summern umfasst modulare Versionen für den diskontinuierlichen Einsatz, geeignet für akustische Signalisierung im Wohn- und Gewerbebereich.

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Bells and buzzers

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM232345R0821.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.061 KG / psc.
Commodity number	85311030
Country of origin	IT
Dimensions (WxHxD)	0.018x0.088x0.06 m
EAN code	8012542323457
Product group	AR
cn8	85311030
eclass	V11.0 : 27143219
etim 7	EC001547 - Bell transformer
etim 8	EC000131 - Bell
remarks	Discontinous operations: the device need rest time after its operation
standards	EN 62080
sound db (a)	Bell (0.6 m) 80 dBBuzzer (0.6 m) 70 dB
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
mounting position	Flexible
sound / tone type	Intermittent
product net length	60 mm
rated voltage (ur)	12 V AC
cable cross-section	Maximum 4 mm2
rated frequency (f)	50/60 Hz
degree of protection	IP20
object classification code	H
power consumption (@pcons)	4 V·A
declaration of conformity - ce	https://library.abb.com/d/9AKK107492A4194
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
width in number of modular spacings	1
