ABB

2CSM251043R0811

Product type: TS 25/12-24 C

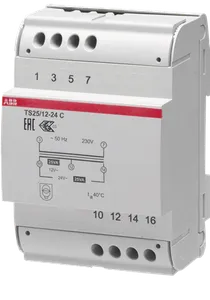

TS 25/12-24 C Safety isolating transformer

Datasheet

RoHS Compliant

Description

TS-C are ideal for supplying permanent power to meters, auxiliary electronic devices and circuits with very low safety voltage (SELV) for bathrooms and showers, lighting, fountains, electro-medical devices and suchlike. TS 25/12-24 C

Low Voltage Products and Systems
Modular DIN Rail Products
Command and Signalling Devices
Bells and Safety Transformers

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM251043R0811.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.945 KG / psc.
Commodity number	85044095
Country of origin	RO
Dimensions (WxHxD)	0.07x0.085x0.12 m
EAN code	8012542928508
Product group	AR
cn8	85043121
eclass	V11.0 : 27031190
etim 7	EC001547 - Bell transformer
etim 8	EC001547 - Bell transformer
remarks	Suitable for loads that require a continuous supply. Double insulation between primary and secondary windings
standards	IEC/EN 61558-2-6
power loss	< 5 (full load) W
application	Building and Industrial
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
power supply	25 V·A
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
eac certificate	https://library.abb.com/d/9AKK107992A6755
imq certificate	https://library.abb.com/d/9AKK107992A6749
primary voltage	230 V
insulation class	B
options provided	None
rohs information	https://library.abb.com/d/9AKK106713A5646
transformer type	Non - Inherently Short Circuit Proof
e-number (sweden)	5208116
secondary current	(10-12) 2.08 A(10-14) 1.04 A(12-11) 0 A
secondary voltage	(10-12) 12 V AC(10-14) 24 V AC(12-14) 0 V AC
tightening torque	0.5 N·m
e-number (finland)	8409006
product net length	44 mm
rated output power	25 W
connecting capacity	2.5 mm2
rated frequency (f)	50/60 Hz
certification agency	IMQ
degree of protection	IP20
environmental information	https://library.abb.com/d/See RoHS Information
rated operational voltage	230 V AC
connecting capacity ul/csa	14 AWG
object classification code	T
output current maximum (iout)	1.04 A
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5646
data sheet, technical information	https://library.abb.com/d/2CSC400002D0209
width in number of modular spacings	4
