ABB

2CSM274361U1801

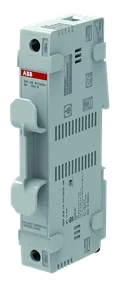

Product type: E 91/32 PV1500e U

Sicherungshalter für Photovoltaik bis 1500 V DC für Sicherungen 10x85/14x85mm

Datasheet

Description

E91/32 PV1500e Sicherungshalter für Photovoltaik bis 1500 VDC für Sicherungen 10x85mm und 14x85mm

Low Voltage Products and Systems
Modular DIN Rail Products
Protection and Safety Devices
Cylindrical Fuse Holders and Fuse Switch Disconnectors

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSM274361U1801.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 60

Product Specifications

Product Attribute	Attribute Value
Weight	0.08 KG / psc.
Commodity number	85389099
Country of origin	RO
Dimensions (WxHxD)	0.023x0.134x0.065 m
EAN code	8012542743613
Product group	AR
cn8	85361010
eclass	V11.0 : 27142121
etim 7	EC002705 - Holder for cylindrical fuse
etim 8	EC002705 - Holder for cylindrical fuse
remarks	For use with CU only 60°C, 75°C or 90°C wire
fuse size	10x85 mm
fuse type	gPV
lock type	Non Padlockable
standards	IEC 60269-1UL 4248-19
power loss	at Rated Operating Conditions per Pole 6 W
mounting type	DIN rail
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
ul certificate	https://library.abb.com/d/9AKK108467A0348
weee b2c / b2b	Business To Business
number of poles	1
tightening torque	2-2.5 N·m
rated current (in)	32 A
rated voltage (ur)	1500 V DC
built-in depth (t2)	65 mm
connecting capacity	Stranded 0.75...25 mm2Rigid 0.75...25 mm2
number of batteries	0
certification agency	CCC, UL
degree of protection	IP20
material of conductor	Copper
ambient air temperature	Operation -5...85 °CStorage -25...85 °C
tightening torque ul/csa	18-22 in·lb
connecting capacity ul/csa	Stranded 14...10 AWGRigid 14...6 AWG
object classification code	F
operating humidity (rhamb)	max. 90% at +20 °C50% at max. +40 °C
rated insulation voltage (ui)	1 kV
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/2CSC444002B0204
width in number of modular spacings	1.3
resistance to shock acc. to iec 60068-2-27	15g 18 shocks 11 ms
resistance to vibrations acc. to iec 60068-2-6	2 to 13 Hz x= 1 mm peak13 to 100 Hz y= 0.7 g peak
shock and vibration withstand acc. to iec 61373	Category 1, Class B
