2CSM291003R1801
ABB

2CSM291003R1801

Product type: E 9F14 GG8

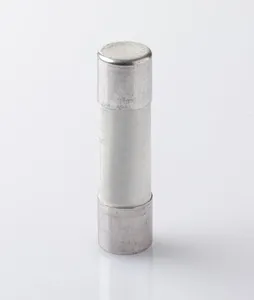

E 9F14 GG8 Fuse link

RoHS Compliant

Description

E 9F14 GG8 is a 14x51 mm cylindrical fuse for circuits protection E 9F14 GG8
Read More
  • Low Voltage Products and Systems
  • Modular DIN Rail Products
  • Protection and Safety Devices
  • Cylindrical and D0 Fuses
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 10
Product Specifications
Product AttributeAttribute Value
Weight0.006 KG / psc.
Commodity number85361010
Country of originFR
Dimensions (WxHxD)0.001x0.051x0.001 m
EAN code8012542910039
Product groupAR
cn8 85361010
eclass V11.0 : 27142002
etim 7 EC002704 - Cylindrical fuse
etim 8 EC002704 - Cylindrical fuse
fuse size 14x51
fuse type gG
standards IEC 60269-2
dimensions 14x51 mm
power loss at Rated Operating Conditions per Pole 1.45 W
rohs status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
release type gG: Used in general protection of cables and lines in installation and industrial applications
weee category 5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b Business To Consumer
contact material copper silver plated (Cu/Ag)
rohs information https://library.abb.com/d/9AKK106713A5625
dimension diagram https://library.abb.com/d/9AKK108466A8533
i2t characteristic https://library.abb.com/d/9AKK108467A0128
rated current (in) 8 A
rated voltage (ur) 690 V
certification agency EAC, UL
construction material Ceramic
environmental information https://library.abb.com/d/See RoHS Information
maximum breaking capacity 120 kA
object classification code F
cut-off current characteristic https://library.abb.com/d/9AKK108466A9072
declaration of conformity - ce https://library.abb.com/d/9AKK106713A5625
data sheet, technical information https://library.abb.com/d/9AKK107991A8329
time-current characteristic curve https://library.abb.com/d/9AKK108467A0149
