ABB

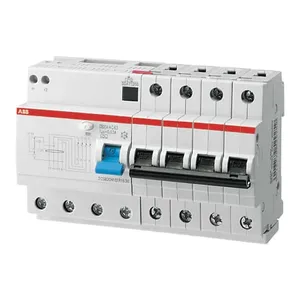

2CSR254101R1505

Product type: DS204 A-B50/0.03

Residual Current Circuit Breaker with Overcurrent Protection DS200 - 4P - 30 mA - 50 A - B - Type A

Datasheet

RoHS Compliant

Description

The RCBOs DS200 series has the function to protect against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection aganist direct contacts. DS204 A-B50/0.03

Low Voltage Products and Systems
Modular DIN Rail Products
Residual Current Devices RCDs
Residual Current Circuit Breakers with Overcurrent Protection RCBO

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSR254101R1505.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.925 KG / psc.
Commodity number	85363030
Country of origin	IT
Dimensions (WxHxD)	0.14x0.085x0.069 m
EAN code	8012542860303
Product group	AM
cn8	85363030
eclass	V11.0 : 27400618
etim 7	EC002281 - Distributor assembly with combination RCCB/MCB
etim 8	EC002281 - Distributor assembly with combination RCCB/MCB
standards	IEC/EN 60947-2IEC/EN 61009-1
power loss	18.4 W
release type	B
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
number of poles	4
options provided	None
rohs information	https://library.abb.com/d/2CSC423002K2701
rated current (in)	50 A
rated voltage (ur)	400 V AC
connecting capacity	Busbar 10 mm2Rigid 25 ... 25 mm2Flexible 25 ... 25 mm2
rated frequency (f)	50/60 Hz
electrical endurance	10000 cycle
accessories available	Yes
rated residual current	30 mA
ambient air temperature	Operation -25 ... +55 °CStorage -40 ... +70 °C
power supply connection	Arbitrary
tripping characteristic	B
operating characteristic	Instantaneous
type of residual current	A type
environmental information	https://library.abb.com/d/Refer to RoHS
maximum breaking capacity	6 kA
number of protected poles	4
rated operational voltage	400 V AC
object classification code	F
position of neutral terminals	RightLeft
declaration of conformity - ce	https://library.abb.com/d/9AKK106713A5607
data sheet, technical information	https://library.abb.com/d/9AKK107991A8329
rated short-circuit capacity (icn)	(400 V AC) 6 kA
short-circuit current rating (sccr)	30 mA
resistance to shock acc. to iec 60068-2-27	25g / 2 shocks / 13 ms
resistance to vibrations acc. to iec 60068-2-6	0.1 mm or 1 g - 20 cycles at 5...150...5 Hz
number of earth leakage circuit breakers (elcbs)	1
rated ultimate short-circuit breaking capacity (icu)	(400 V AC) 10 kA
