ABB

2CSS200923R0001

Product type: SN201-IH

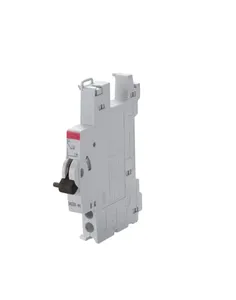

SN201-IH Interface module with auxiliary contact

Datasheet

RoHS Compliant

Description

The SN201-IH auxiliary contact allows the indication of the device contact positions. It can be used as an interface module between MCB of the SN201 series and other compact auxiliary elements. SN201-IH

Low Voltage Products and Systems
Modular DIN Rail Products
Miniature Circuit Breakers MCBs
Miniature Circuit Breakers MCBs Accessories
Auxiliary / Signal Contacts

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2CSS200923R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.1 KG / psc.
Commodity number	85365080
Country of origin	IT
Dimensions (WxHxD)	0.009x0.085x0.069 m
EAN code	8012542104858
Product group	AA
cn8	85389099
eclass	V11.0 : 27143502
etim 7	EC001286 - Auxiliary device for distribution board devices
etim 8	EC001286 - Auxiliary device for distribution board devices
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
suitable for	DS203NC
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Consumer
rohs information	https://library.abb.com/d/2CSC402002K0201
e-number (sweden)	2100353
mounting position	Right
e-number (finland)	3210647
number of switches	0
rated voltage (ur)	230 V
number of contacts co	1
number of contacts nc	0
number of contacts no	0
environmental information	https://library.abb.com/d/refer to RoHS information
object classification code	Q
suitable for product class	RCBOs
declaration of conformity - ce	https://library.abb.com/d/2CSC400001D2701
number of auxiliary contacts nc	0
number of auxiliary contacts no	0
data sheet, technical information	https://library.abb.com/d/2CSC400002D0209
number of auxiliary contacts co (spdt)	1
