ABB

2TLA020001R1000

Product type: JSHD2C type E

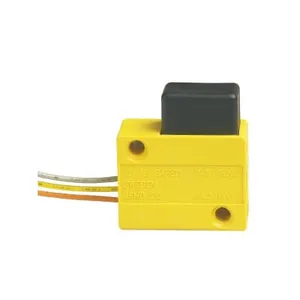

JSHD2C type E Three-position single pushbutton

Datasheet

RoHS Compliant

Description

The JSHD2C Type E is a three-position pushbutton with gold plated contacts and 3 leads, each 190 mm. The force needed to actuate the push-button from middle to bottom is 20 N. Three-position pushbuttons are usually used in pair in a three-position device. JSHD2C type E

Low Voltage Products and Systems
Control Products
Safety Products
Safety Control Devices
JSHD

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2TLA020001R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.01 KG / psc.
Commodity number	85369095
Country of origin	CN
Dimensions (WxHxD)	100x14x170 mm
EAN code	7350024456837
Product group	G4
eclass	V11.0 : 27371238
etim 6	EC002611 - Control switch
etim 7	EC002611 - Control switch
etim 8	EC002611 - Control switch
unspsc	39121545
function	Three-position single pushbutton
material	Contact: AuHousing: POM 20% GF (yellow)Plunger: PBT (Black)
b10d value	2 million operations to middle position968 000 operations to bottom position
product name	Three-position single pushbutton
curus certificate	https://library.abb.com/d/2TLC010153D0201
semko certificate	https://library.abb.com/d/2TLC172032D0201
certification agency	CEcURusKiwa
degree of protection	IP54
technical information	Foff: 20 N; Mechanical service life: > 1 million cycles, top to middle position, > 100 000 cycles, middle to bottom position
ambient air temperature	Operation -25 ... +55 °CStorage -40 ... +85 °C
communication interface	Contacts
connection configuration	3 leads, 190 mm each
object classification code	B
declaration of conformity - ce	https://library.abb.com/d/2TLC172022D0201
declaration of conformity - ukca	https://library.abb.com/d/2TLC010152D0201
data sheet, technical information	https://library.abb.com/d/2TLC010097L0201
