ABB

2TLA020002R3100

Product type: JSHD4H2 0.15m

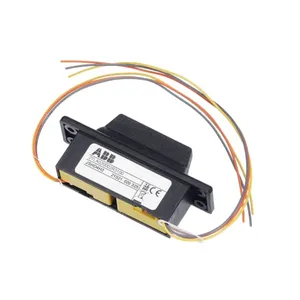

JSHD4H2 0.15m Three-position dual pushbutton

Datasheet

RoHS Compliant

Description

JSHD4H2 0.15m is a three-position device for internal panel mounting with 6 leads, each 150mm long. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming. JSHD4H2 0.15m

Low Voltage Products and Systems
Control Products
Safety Products
Safety Control Devices
JSHD

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2TLA020002R3100.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.04 KG / psc.
Commodity number	85369095
Country of origin	SE
Dimensions (WxHxD)	100x23x200 mm
EAN code	7350024455076
Product group	G4
eclass	V11.0 : 27371238
etim 6	EC002571 - Agreement switch
etim 7	EC002571 - Agreement switch
etim 8	EC002571 - Agreement switch
unspsc	39122205
function	Three-position dual pushbutton usual mounted on another device, e.g. a robot pendant
material	Housing: PP (polypropylene with mineral filling)Rubber: Thermoplastic elastomer on PP basisSteering T: PP with fiberglass filling
product name	Three-position dual pushbutton
ur certificate	https://library.abb.com/d/2TLC010153D0201
status indicator	No
curus certificate	https://library.abb.com/d/2TLC010153D0201
semko certificate	https://library.abb.com/d/2TLC172032D0201
certification agency	CEcURusKiwa
degree of protection	IP65
number of contacts co	2
number of contacts nc	0
number of contacts no	0
performance level (pl)	Up to e
ambient air temperature	Operation 0 ... +50 °CStorage -20 ... 80 °C
communication interface	Contacts
connection configuration	6 leads, 150 mm each
object classification code	B
declaration of conformity - ce	https://library.abb.com/d/2TLC172022D0201
declaration of conformity - ukca	https://library.abb.com/d/2TLC010152D0201
data sheet, technical information	https://library.abb.com/d/2TLC010126L0201
rated operational current dc-12 (ie)	(24 V) 0.02 A
