ABB

2TLA022316R0000

Product type: M12-3R

M12-3R Connection accessory

Datasheet

RoHS Compliant

Description

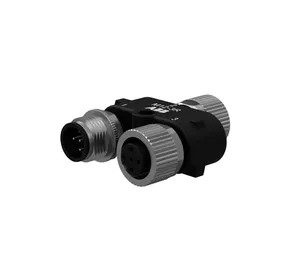

M12 Y-connector for connection of a reset light button to Orion1 Base (M12-CTO1BM necessary), Orion 2 Base/Extended, Orion3 Base (M12-CTO3B necessary) and Orion3 Extended. One M12-8 female connector (#2) for connecting Orion, one M12-5 male connector (#1) for connecting +24 VDC, 0 V and the OSSD signals and one M12-5 female connector (#3) for connecting a reset light button like Smile. M12-3R

Low Voltage Products and Systems
Control Products
Safety Products
Optical Safety Devices

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2TLA022316R0000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.026 KG / psc.
Commodity number	85444290
Country of origin	CN
Dimensions (WxHxD)	0.035x0.043x0.015 m
EAN code	7350024482942
Product group	G8
eclass	V11.0 : 27060313
etim 4	EC000057 - Low voltage power cable
etim 5	EC000057 - Low voltage power cable
etim 6	EC002925 - Sensor-actuator adapting connector
etim 7	EC002925 - Sensor actuator adapter
etim 8	EC002925 - Sensor actuator adapter
unspsc	39121438
suitable for	Orion1 BaseOrion2 BaseOrion2 ExtendedOrion3 BaseOrion3 Extended
marketing video	https://library.abb.com/d/9AKK10103A4645, https://library.abb.com/d/2TLC010018N0201
e-number (sweden)	3832384
object classification code	X
data sheet, technical information	https://library.abb.com/d/2TLC010001C0202
