ABB

2TLA920033R0000

Name: 2TLA920033R0000
Brand: ABB
Availability: PreOrder

Product type: JSD-HD4-210510

JSD-HD4-210510 Safety Control Devices

RoHS Compliant

Description

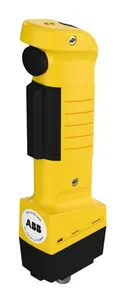

The JSD-HD4-210510 is a three-position enabling device with LEDs and an additional top button. The connection is realized via a cable 10m with Binder 6pol. male connector. Please be aware that the internal wiring isn´t equivalent to the standard devices. To ensure the right function, please check the data sheet before ordering. Three-position enabling devices are used to allow limited movement of the machine when the operator is in the hazardous area, for example during commissioning, maintenance and troubleshooting. JSD-HD4-210510

Low Voltage Products and Systems
Control Products
Safety Products
Safety Control Devices
JSHD

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2TLA920033R0000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.78 KG / psc.
Commodity number	85365080
Country of origin	DE
Dimensions (WxHxD)	99x200x255 mm
EAN code	4013614502026
Product group	G7
eclass	V11.0 : 27371238
etim 7	EC002571 - Agreement switch
etim 8	EC002571 - Agreement switch
function	Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area.
material	Rubber: NBRHandle: Polyamid and Nory
b10d value	2 million operations to middle position968 000 operations to bottom position
product name	Safety Control Devices
status indicator	Yes
degree of protection	IP65
number of contacts no	3
performance level (pl)	Up to e
ambient air temperature	Operation -10 ... +50 °C
communication interface	Contacts
connection configuration	CableBinder Connector
maximum switching current	Main Circuit 20 mA
maximum switching voltage	Main Circuit 30 V
rated operational voltage	24 V DC
rated operational current dc-12 (ie)	(24 V) 0.02 A
