ABB

2TLA920502R0004

Product type: HD5-B-102

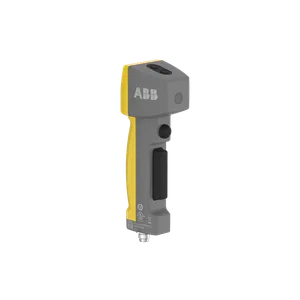

HD5-B-102 Three-position handheld device - Complete

Datasheet

RoHS Compliant

Description

Three position handheld device with AS-i Integrated technology. 1 front + 2 top auxiliary buttons.Home position sensor and flashlight. M12-5 male connector. HD5 is suitable for Food and Beverage applications with the following features: Resistant to most chemicals, fiberglass reinforced plastic, anti-condensation membrane, IP65. HD5-B-102

Low Voltage Products and Systems
Control Products
Safety Products
Safety Control Devices
JSHD

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 2TLA920502R0004.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.26 KG / psc.
Commodity number	85365019
Country of origin	DE
Dimensions (WxHxD)	300x60x300 mm
EAN code	4013614554025
Product group	G4
eclass	V11.0 : 27371238
etim 7	EC002571 - Agreement switch
etim 8	EC002571 - Agreement switch
function	Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area. Developed for the Food and Beverage industry.
material	Additional buttons: TPEHandle: Fiberglass reinforced plastic, PPH G30Three-position button: TF4STE_B102
b10d value	2 million operations to middle position968 000 operations to bottom position
application	Suitable for Food and Beverage
product name	Three-Position Device
sub-function	1 front and 2 top auxiliary buttons
sub-function 2	FlashlightHome position sensor
rohs information	https://library.abb.com/d/2TLC010045D0201
status indicator	Yes
culus certificate	https://library.abb.com/d/2TLC010050D0201
dimension diagram	https://library.abb.com/d/2CDC172112D0201
certification agency	cULusTÜV SÜD
degree of protection	IP65
enclosure type ul/csa	1
number of contacts co	2
number of contacts nc	0
number of contacts no	0
tüv certificate	https://library.abb.com/d/2TLC010054D0201, https://library.abb.com/d/2TLC010053D0201
performance level (pl)	Up to e
ambient air temperature	Operation -10 ... 50 °CStorage -20 ... 70 °C
communication interface	AS-i
connection configuration	M12-5 male
rated operational voltage	30 V DC
object classification code	X
declaration of conformity - ce	https://library.abb.com/d/2TLC010045D0201
data sheet, technical information	https://library.abb.com/d/2TLC010093L0201
rated operational current dc-12 (ie)	(24 V) 0.02 A
