ABB

4TBA831035C0100

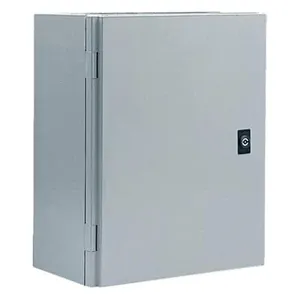

Product type: AR043P13

ARIA 43

Datasheet

Description

The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA43 ARIA Cabinet 415x315x170 DB 1-point ARIA, double bit 3mm, 1-point lock. IP65, IK08 AR043P13

Low Voltage Products and Systems
Enclosures
General Purpose Enclosures
GRP cabinets
ARIA

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 4TBA831035C0100.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	3.9 KG / psc.
Commodity number	85381000
Country of origin	HU
Dimensions (WxHxD)	0.315x0.415x0.17 m
EAN code	5411815233913
Product group	2E
color	Grey
eclass	V11.0 : 27142408
etim 7	EC000058 - Empty cabinet
etim 8	EC000058 - Empty cabinet
door type	Single
thickness	Cabinet Plate 3 mmDoor Plate 3 mm
ral number	RAL 7035 - Light Grey
cover style	Closed
mounting type	Surface mounted (plaster)
weee category	Product Not in WEEE Scope
number of rows	0
weee b2c / b2b	Business To Business
cover plate type	Door
housing material	Plastic
protection class	Isolated
surface finishing	Untreated
enclosure type nema	Type12
degree of protection	IP66
number of conduit inlets	0
number of flange openings	0
declaration of conformity - ce	https://library.abb.com/d/No declaration needed
data sheet, technical information	https://library.abb.com/d/No document needed
width in number of modular spacings	0
