ABB

4TBP833204N0100

Product type: PS833204

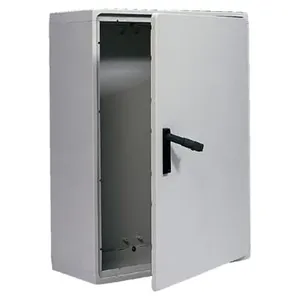

PS833204 POLYSAFE ENCL. IP55 PL.DOOR 1000X750X320

Datasheet

Description

Cabinets are delivered assembled. The cabinets are made of self-extinguishing, glass-fibre reinforced and halogen-free polyester, coloured in RAL 7035 (light grey) and offer maximum protection for the operator and the built-in equipment by means of protective insulation and also a high degree of protection of IP55 in accordance with IEC 60529, EN 60529. The cabinets have a degree of protection of IK 10 according to EN 62262 and IEC 62262. Wall, floor, base and pole mounting. Combinable in height, width and depth. Rated insulation voltage Ui= 1000V PSS4305 Cabinet 1000x750x320 with continuous doorIP55, IK10

Low Voltage Products and Systems
Enclosures
General Purpose Enclosures
GRP cabinets
Polysafe

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 4TBP833204N0100.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	29.8 KG / psc.
Commodity number	8538100000
Country of origin	BE
Dimensions (WxHxD)	750x330x1000 mm
EAN code	5411815251344
Product group	2E
scip	32f455a8-ac40-4c05-b4e8-dfedc2dfc30d Belgium (BE)
color	Grey
eclass	V11.0 : 27142408
etim 7	EC000058 - Empty cabinet
etim 8	EC000058 - Empty cabinet
door type	Single
thickness	Cabinet Plate 4 mmDoor Plate 4 mm
ral number	RAL 7035 - Light Grey
cover style	Closed
mounting type	Floor installation
weee category	Product Not in WEEE Scope
weee b2c / b2b	Business To Business
cover plate type	Door
housing material	Plastic
surface finishing	Untreated
enclosure type nema	Type12
degree of protection	IP54
number of conduit inlets	0
declaration of conformity - ce	https://library.abb.com/d/9AJK000580
data sheet, technical information	https://library.abb.com/d/No document needed
