ABB

6AGC081281

Name: 6AGC081281
Brand: ABB
Availability: PreOrder

Product type: TAC-W22-T-RD-MC-0

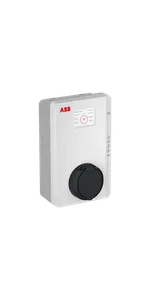

TAC-W22-T-RD-MC-0 Terra AC wallbox type 2, socket, 3-phase/32A, MID certified, with RFID, display and 4G

Description

TAC-W22-T-RD-MC-0 AC wallbox type 2, socket, 3-phase/32A, MID certified, with RFID, display and 4G

Electric Vehicle Charging
AC Charging
AC Chargers CE

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 6AGC081281.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	3.1 KG / psc.
Commodity number	85371098
Country of origin	CN
Dimensions (WxHxD)	0x0.32x0.143 m
EAN code	8719874450980
Product group	SK
etim 8	EC002883 - Charging device E-Mobility
unspsc	25175002
standards	EN 61851-1EN 61851-23EN 61000-6-2EN 61000-6-3EN 301 908-2IEC 60721-3-2: IE23RoHS
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
screen size	3.5 in
output power	Nominal 22 kW
ev connectors	No cable outlet
input current	3-phase 32 A
mounting type	Wall mounting
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
enclosure type	indoor, outdoor
output current	3-phase 32 A
supply voltage	AC 3-phase 320 ... 480 V
connection power	Nominal 22 kW
housing material	Plastic
number of phases	3
energy meter type	AC-MID
overload protection	Overcurrent protection at 40 A
abb type designation	Terra AC
degree of protection	acc. to IEC 60529 IP54
overvoltage category	III
authentication method	RFIDAppFree Vending
output voltage (uout)	AC 3-phase 320 ... 480 V
load management method	OCPP - Based
ambient air temperature	Operation -30 ... +50 °CStorage -50 ... +80 °C
communication interface	Wi-FiEthernetBluetoothModbus4G
selling unit of measure	piece
connection configuration	TT, TN
impact resistance rating	IK08
number of socket outlets	(AC Type 2) 1 piece
operating frequency (fsw)	50 ... 60 Hz
alternative product reference	3Q510000400A
declaration of conformity - ce	https://library.abb.com/d/9AKK107991A0511
idea granular category code (igcc)	1311 >> Electric vehicle charging station
maximum operating altitude permissible	2000 m
number of miniature circuit breakers (mcbs)	0
number of rcds electric vehicle supply equipment	Resid. Curr. Monitor
